Fittings / Direct Weld® / 100-1-0-CUNI

Direct Socketweld/Braze Coupling (Pipe)

Data sheet
American Engineering Trusted Wordwide ®

DATA SHEET

100-1-0-CUNI
11/06/2025 6:56 PM

Product Category 100-1-0-CUNI
Part Description Direct Socketweld/Braze Coupling (Pipe)

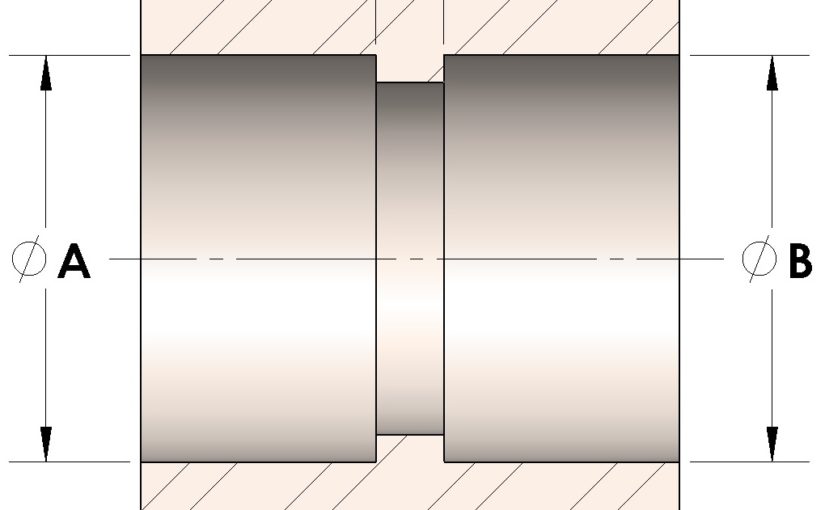

Dimensions

A 0.555
B 0.42
C 1.19
D 0.380
E 0.38

General

Pressure Rating 4500 PSI
Fitting Material Copper Nickel 70/30, MIL-C--15726F, UNS C71500

cpvmfg.com | 484.731.4010

The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user. Caution: Do not mix or interchange valve components with those of other manufacturers.
