Fittings / Direct Weld® / 107-4-10-M

Direct Socketweld/Braze Coupling (Pipe X Tube)

Data sheet
American Engineering Trusted Wordwide ®

DATA SHEET

107-4-10-M
11/06/2025 10:26 PM

Product Category 107-4-10-M
Part Description Direct Socketweld/Braze Coupling (Pipe X Tube)

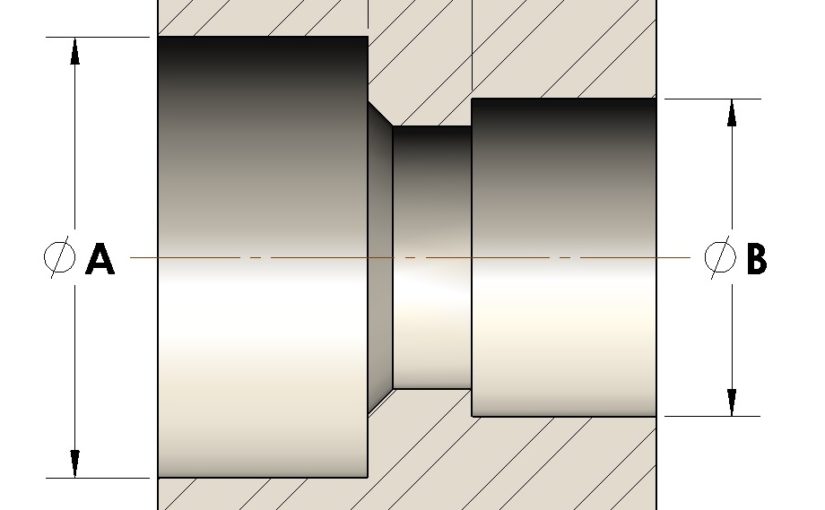

Dimensions

A 1.055
B 0.63
C 1.19
D 0.500

General

Pressure Rating 6000 PSI
Fitting Material Monel®, ASTM B164, UNS N04405

cpvmfg.com | 484.731.4010

The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user. Caution: Do not mix or interchange valve components with those of other manufacturers.
