Valves / Check / 36-6

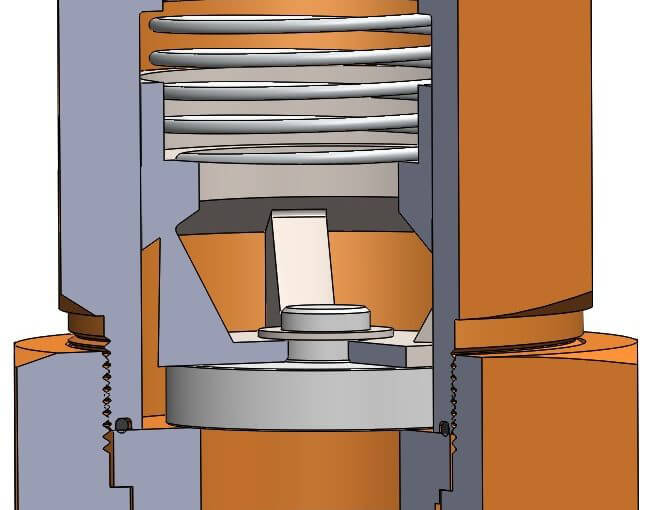

Bronze Body In-line Silent Check Valve with Female Pipe Thread (NPT) Ends

Data sheet
American Engineering Trusted Wordwide ®

DATA SHEET

36-6
11/08/2025 10:07 AM

Product Category 36-6
Product Line NPT Threaded Check Valves (34, 36, 37 Series)
Part Description Bronze Body In-line Silent Check Valve with Female Pipe Thread (NPT) Ends

Dimensions

End to End 5.25
Female Inlet and Outlet (NPT) 1.250"-11.5
Weight (lbs.) 7.5

General

Pressure Rating 300 PSI
Temperature Range -30°F to 250°F (-34°C to 121°C)
Standard Soft Goods Buna-N O-Rings and Nylon Disc
Cartridge Type Check
Connection Type Female Pipe Thread (NPT)
Connection Size 1.25"
Body Material Valve Bronze, ASTM B61, UNS C92200

Options

Optional Soft Goods Viton® O-Rings, EPDM O-Rings

cpvmfg.com | 484.731.4010

The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user. Caution: Do not mix or interchange valve components with those of other manufacturers.
