American Engineering Trusted Wordwide ®DATA SHEET
371-4
11/07/2025 2:44 AM
| Product Category | 371-4 |
| Product Line | O-SEAL® Shutoff Valves (300 Series) |
| Part Description | 3/4" Angle Shutoff Valve with Welded Ends |

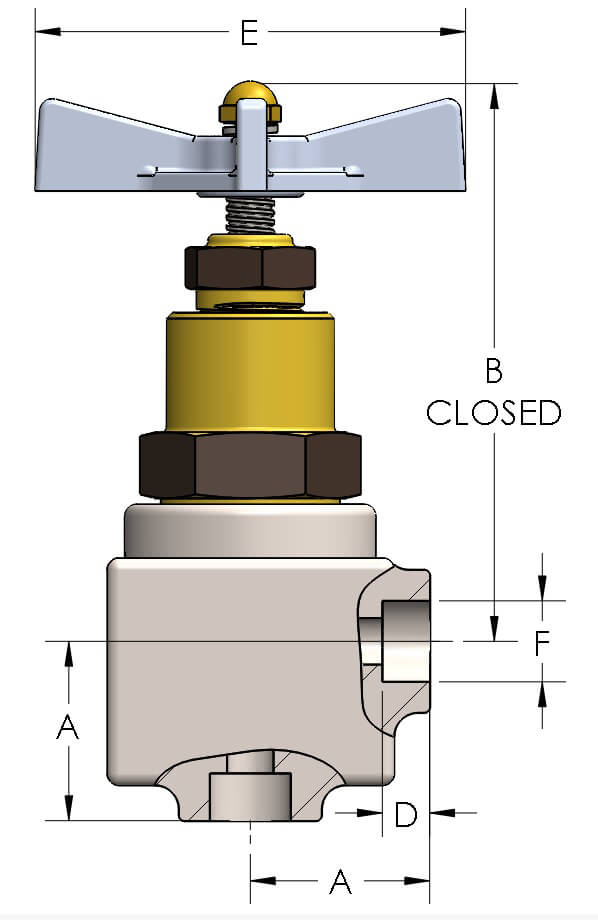

Dimensions
| Port Dia. | 0.63 |
| A | 2.310 |
| B | 5.69 |
| D | 0.560 |
| E | 5.25 |
| F (Pipe Size) | 1.065 |
| F (Tube Size) | 1.002 |
| Lift | 0.56 |
General
| Pressure Rating | 6000 PSI |
| Temperature Range | -15°F to 275°F (-26°C to 135°C) |
| Standard Soft Goods | [-G] Polyurethane® Packing and Viton® O-Rings |
| Cartridge Type | Shutoff |
| Connection Type | Socketweld |
| Connection Size | 3/4" |
| Body Material | 316/L Stainless Steel, ASTM A276, UNS S31603 |
| Bonnet Material | Nickel Aluminum Bronze, ASTM B150, UNS C63200 |
Options
| [-VC] Vacuum Service | Option to add additional softgoods for internal vacuum service. |
| [-P] Panel Mount | Option to add external thread and panel mounting nut to bonnet |
| Port & Vent Options | [-PA] Port Above Seat (1/4" NPT), [-PB] Port Below Seat (1/4" NPT), '[-VA] Vent Above Seat (1/2"-13 SAE), [-VB] Vent Below Seat (1/2"-13 SAE), |
| Optional Soft Goods | [-B] Polyurethane® Packing and Buna-N O-Rings, [-C] Viton® Packing & O-Rings, [-D] EPDM Packing & O-Rings |
