American Engineering Trusted Wordwide ®DATA SHEET
380-5-P-OXNB-VC
11/07/2025 1:06 PM
| Product Category | 380-5-P-OXNB-VC |
| Product Line | OXNB Shutoff Valve (300 Series) |
| Part Description | 1.00" Globe Shutoff Oxygen Hand Valve |

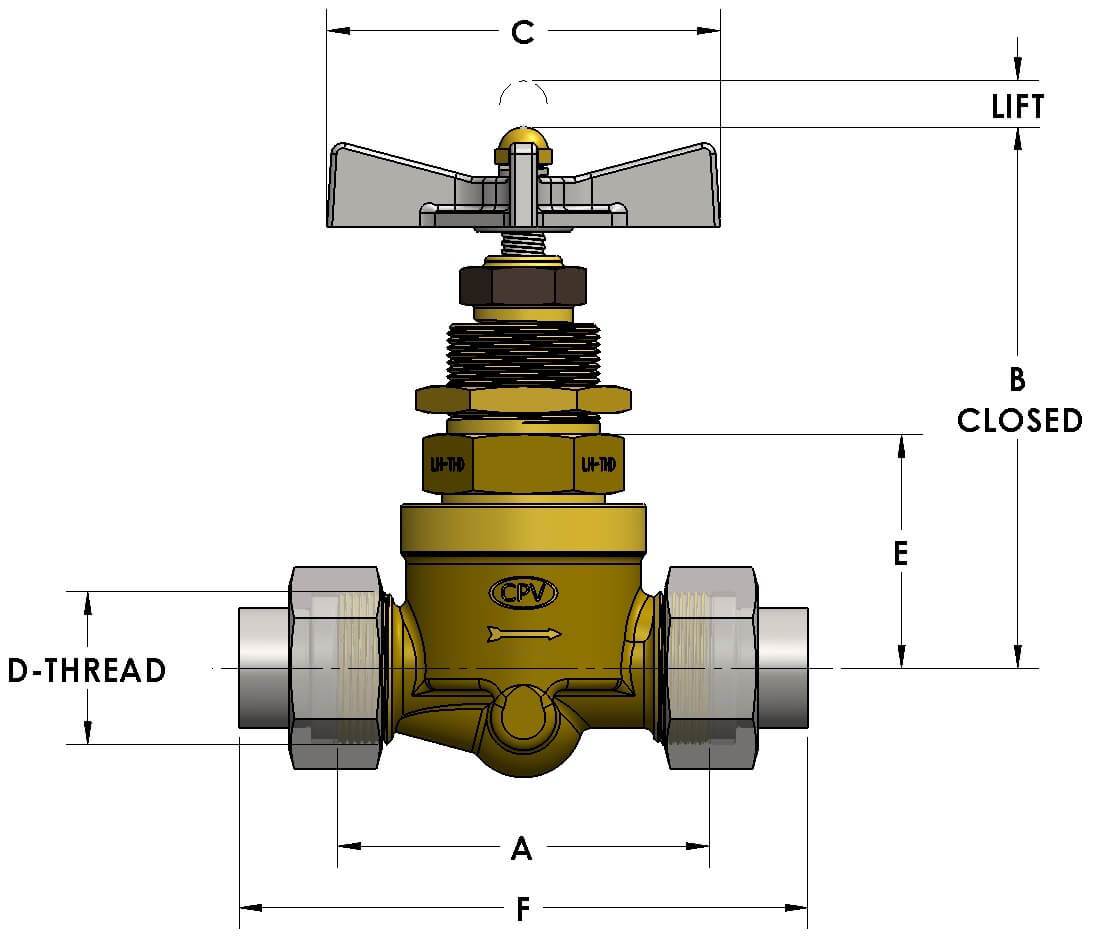

Dimensions
| Port Dia. | 0.81 |
| A | 5.250 |
| B | 7.63 |
| C | 7.25 |
| CRN | 0C16868.2 |
| D-THREAD | 2.313"-12UNS |
| E | 3.75 |
| F | 7.75 |
| Lift | 0.59 |
General
| Pressure Rating | 4500 PSI |
| Temperature Range | -15°F to 400°F (-26°C to 204°C) |
| Standard Soft Goods | [-C] Viton® Packing & O-Rings |
| Cartridge Type | Shutoff |
| Connection Type | O-SEAL® Union Thread |
| Connection Size | 1.00" |
| Body Material | Naval Brass, ASTM B21, UNS C46400 |
| Bonnet Material | Naval Brass, ASTM B21, UNS C46400 |
| CRN | 0C16868.2 |
Options
| Port & Vent Options | [-PA] Port Above Seat (1/4" NPT), [-PB] Port Below Seat (1/4" NPT), '[-VA] Vent Above Seat (1/2"-13 SAE), [-VB] Vent Below Seat (1/2"-13 SAE), |
