Fittings / O-SEAL® / 40-6-SS316L

Tee

Data sheet
[wp_objects_pdf]
American Engineering Trusted Wordwide ®

DATA SHEET

40-6-SS316L
11/15/2025 4:22 PM

Product Category 40-6-SS316L
Part Description Tee

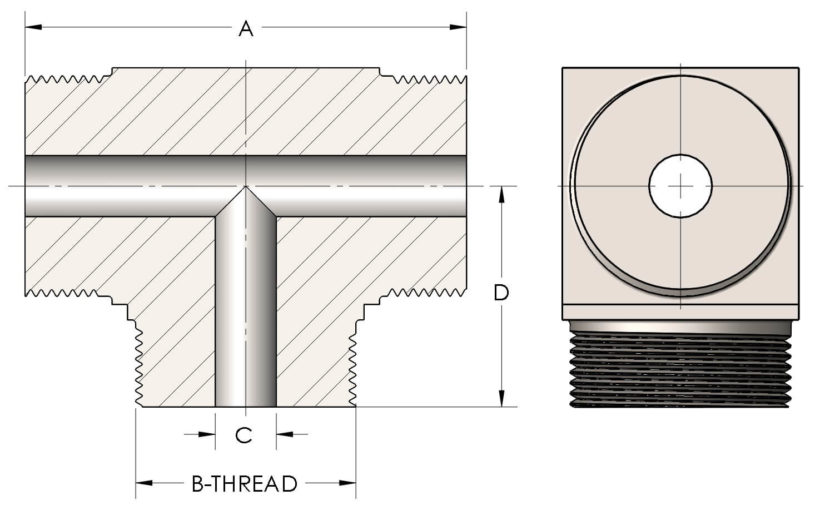

Dimensions

A 5.000
B-THREAD 2.750" - 12UN
C 1.19
D 2.500

General

Pressure Rating 6000 PSI
Threadpiece Material 316 Stainless Steel, ASTM A351, UNS J92900

cpvmfg.com | 484.731.4010

The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user. Caution: Do not mix or interchange valve components with those of other manufacturers.
