Fittings / O-SEAL® / 41-8-M

Elbow 90°

Data sheet
[wp_objects_pdf]
American Engineering Trusted Wordwide ®

DATA SHEET

41-8-M
11/18/2025 5:15 PM

Product Category 41-8-M
Part Description Elbow 90°

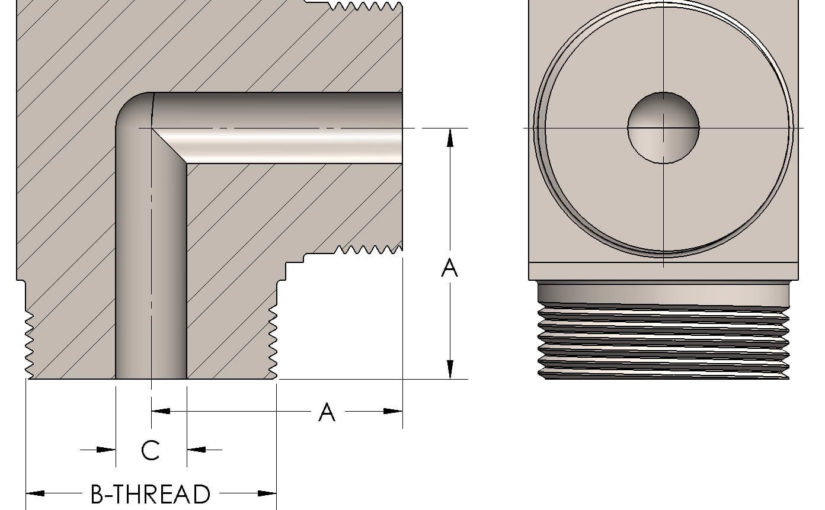

Dimensions

A 3.250
B-THREAD 3.750" - 12UN
C 1.75

General

Pressure Rating 6000 PSI
Threadpiece Material Monel®, ASTM A494

cpvmfg.com | 484.731.4010

The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user. Caution: Do not mix or interchange valve components with those of other manufacturers.
