Fittings / O-SEAL® / 42-0-M

Elbow 45°

Data sheet
American Engineering Trusted Wordwide ®

DATA SHEET

42-0-M
11/07/2025 2:37 AM

Product Category 42-0-M
Part Description Elbow 45°

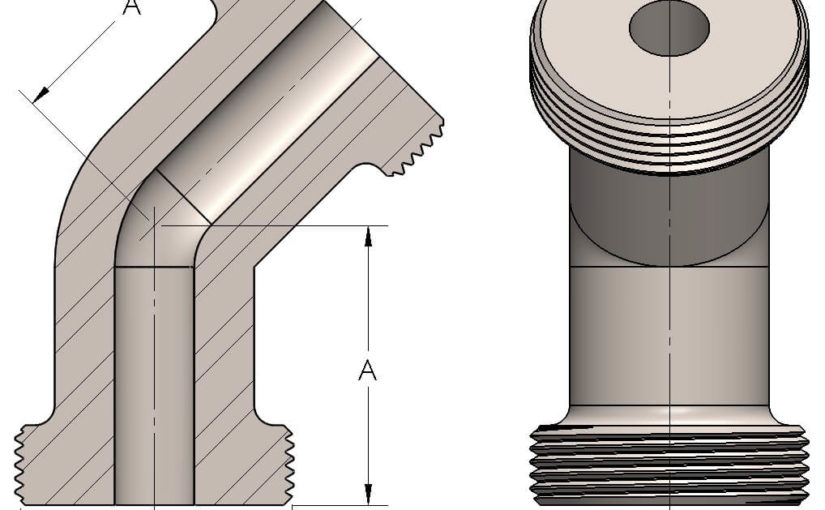

Dimensions

A 1.130
B-THREAD 1.000" - 14UNS
C 0.22

General

Pressure Rating 6000 PSI
Threadpiece Material Monel®, ASTM A494

cpvmfg.com | 484.731.4010

The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user. Caution: Do not mix or interchange valve components with those of other manufacturers.
