Fittings / Direct Weld® / 45-5-12-SS316L

Direct Socketweld/Braze Pipe X Male Straight Thread Adapter

Data sheet
American Engineering Trusted Wordwide ®

DATA SHEET

45-5-12-SS316L
11/07/2025 2:14 AM

Product Category 45-5-12-SS316L
Part Description Direct Socketweld/Braze Pipe X Male Straight Thread Adapter

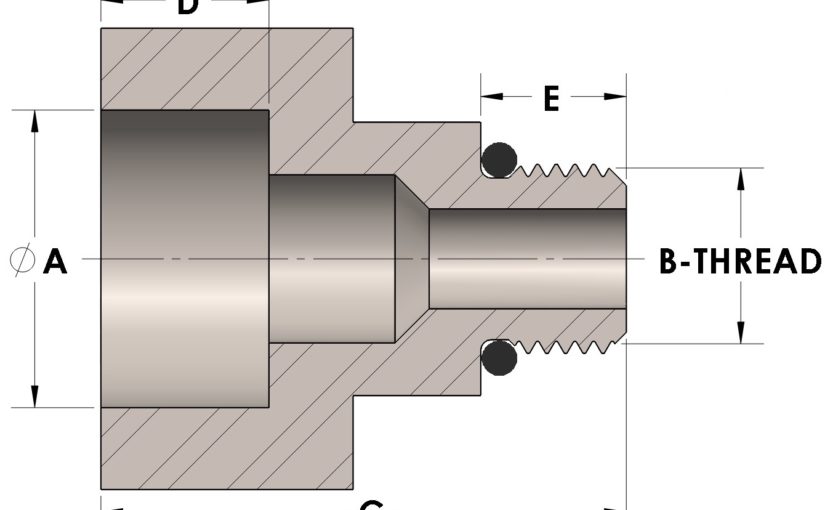

Dimensions

A 1.330
B-THREAD 1.063"-12UN
C 2.00
D 0.630
E 0.63

General

Pressure Rating 6000 PSI
O-Ring Material Viton® Fluorocarbon Type 1, Class 2 (90 durometer)
Fitting Material 316/L Stainless Steel, ASTM A276, UNS S31600/03

cpvmfg.com | 484.731.4010

The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user. Caution: Do not mix or interchange valve components with those of other manufacturers.
