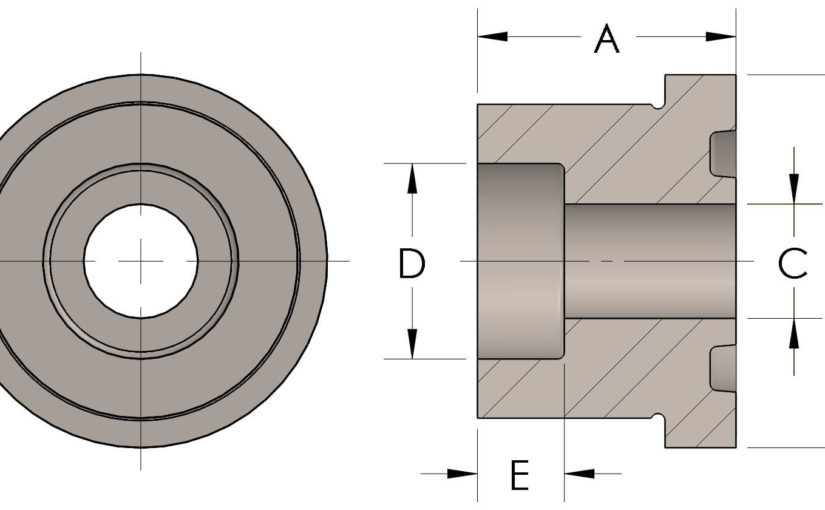

Dimensions
| A | 1.25 |
| B | 2.19 |
| C | 0.81 |
| D | 1.25 |
| E | 0.63 |
General
| Pressure Rating | 4500 PSI |
| Tailpiece Material | Copper Nickel 70/30, MIL-C--15726F, UNS C71500 |
| O-Ring Material | Viton® Fluorocarbon Type 1, Class 2 (90 durometer) |
