Fittings / O-SEAL® / 48T-3-M

Socketweld Tube

Data sheet
American Engineering Trusted Wordwide ®

DATA SHEET

48T-3-M
11/07/2025 9:09 PM

Product Category 48T-3-M
Part Description Socketweld Tube

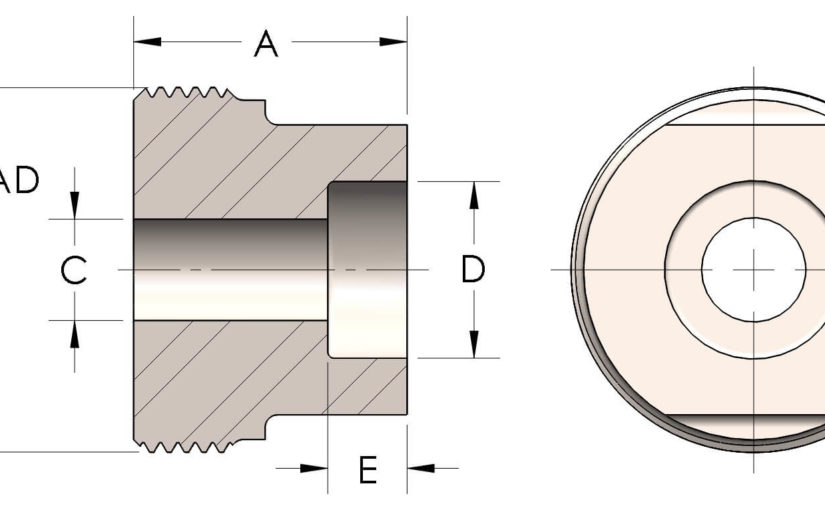

Dimensions

A 1.310
B-THREAD 1.750" - 12UN
C 0.50
D 0.752
E 0.50

General

Pressure Rating 6000 PSI
Threadpiece Material Monel®, ASTM B164, UNS N04405

cpvmfg.com | 484.731.4010

The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user. Caution: Do not mix or interchange valve components with those of other manufacturers.
