Fittings / O-SEAL® / 50N-1-NAB

Union Nut

Data sheet
American Engineering Trusted Wordwide ®

DATA SHEET

50N-1-NAB
11/07/2025 9:45 PM

Product Category 50N-1-NAB
Part Description Union Nut

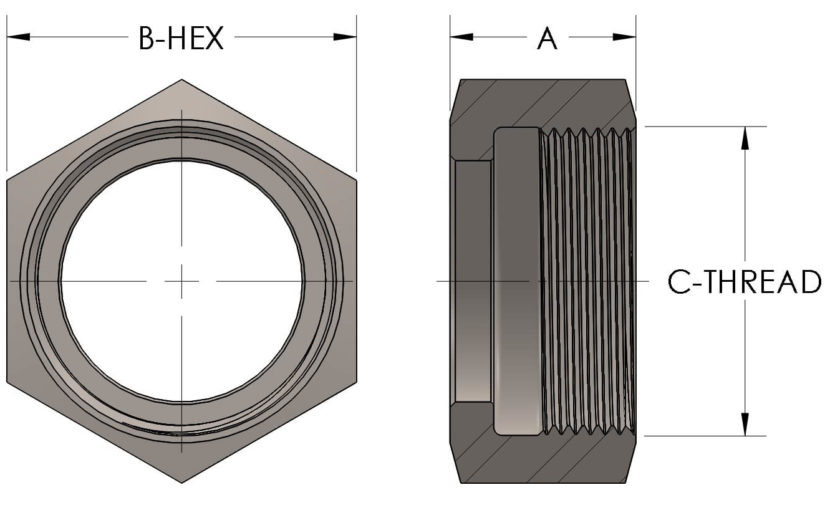

Dimensions

A 1.000
B-HEX 1.38
C-THREAD 1.188" - 12UN

General

Pressure Rating 6000 PSI
Union Nut Material Nickel Aluminum Bronze, ASTM B150, UNS C63200

cpvmfg.com | 484.731.4010

The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user. Caution: Do not mix or interchange valve components with those of other manufacturers.
