Fittings / O-SEAL® / 51R-7-5-CUNI

Socketweld Pipe Reducer

Data sheet
American Engineering Trusted Wordwide ®

DATA SHEET

51R-7-5-CUNI
11/06/2025 6:39 PM

Product Category 51R-7-5-CUNI
Part Description Socketweld Pipe Reducer

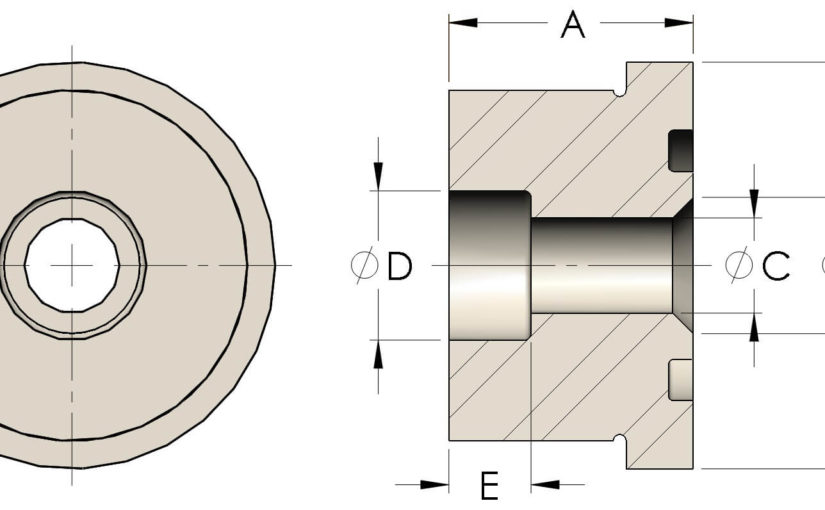

Dimensions

A 1.630
B 2.94
C 0.81
CRN 0A16860.2
D 1.330
E 0.50
F 1.38

General

Pressure Rating 6000 PSI
Tailpiece Material Copper Nickel 70/30, MIL-C--15726F, UNS C71500
O-Ring Material Viton® Fluorocarbon Type 1, Class 2 (90 durometer)
CRN 0A16860.2

cpvmfg.com | 484.731.4010

The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user. Caution: Do not mix or interchange valve components with those of other manufacturers.
