Fittings / O-SEAL® / 51R-9-S

Socketweld Pipe

Data sheet
American Engineering Trusted Wordwide ®

DATA SHEET

51R-9-S
11/07/2025 2:14 AM

Product Category 51R-9-S
Part Description Socketweld Pipe

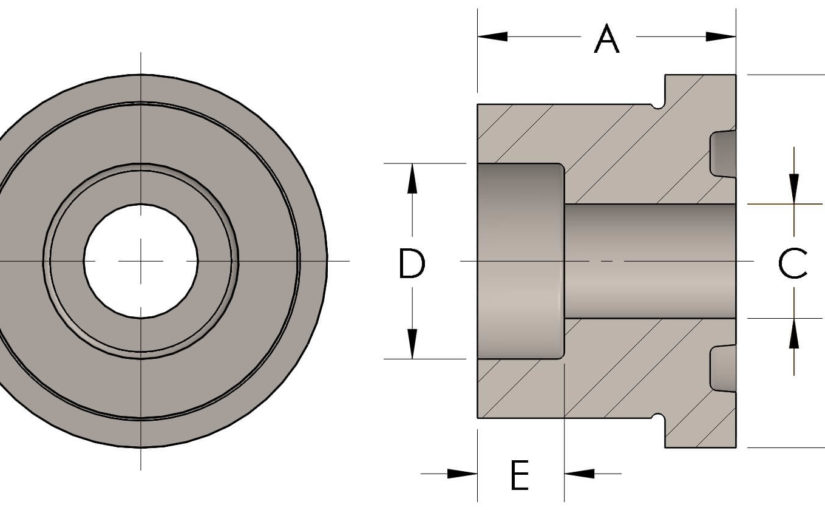

Dimensions

A 2.000
B 4.31
C 2.13
CRN 0A16860.2
D 2.906
E 1.00

General

Pressure Rating 4500 PSI
Tailpiece Material Carbon Steel, ASTM A108
O-Ring Material Viton® Fluorocarbon Type 1, Class 2 (90 durometer)
CRN 0A16860.2

cpvmfg.com | 484.731.4010

The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user. Caution: Do not mix or interchange valve components with those of other manufacturers.
