Fittings / O-SEAL® / 51T-9-M

Socketweld Pipe

Data sheet
American Engineering Trusted Wordwide ®

DATA SHEET

51T-9-M
11/07/2025 12:00 PM

Product Category 51T-9-M
Part Description Socketweld Pipe

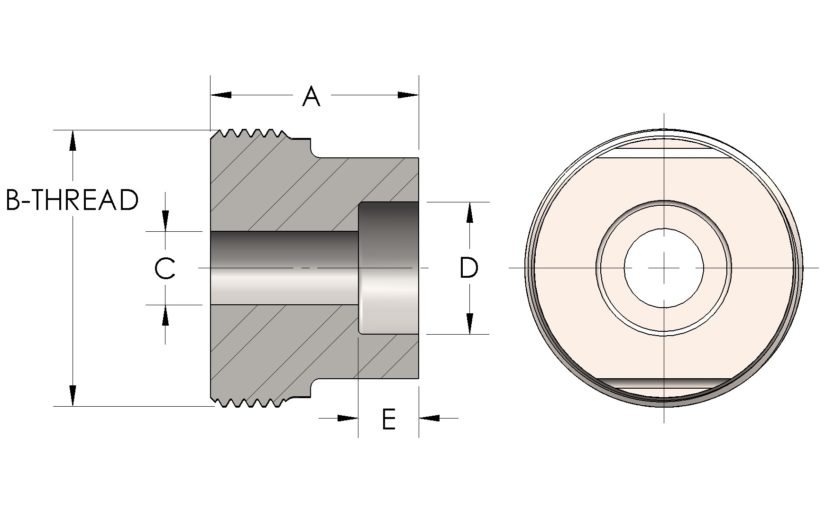

Dimensions

A 2.560
B-THREAD 4.500" - 12UN
C 2.13
CRN 0A16860.2
D 2.906
E 1.00

General

Pressure Rating 6000 PSI
Threadpiece Material Monel®, ASTM B164, UNS N04405
CRN 0A16860.2

cpvmfg.com | 484.731.4010

The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user. Caution: Do not mix or interchange valve components with those of other manufacturers.
