Fittings / O-SEAL® / 52T-4-CUNI

Socket Braze Pipe

Data sheet
American Engineering Trusted Wordwide ®

DATA SHEET

52T-4-CUNI
11/07/2025 1:28 AM

Product Category 52T-4-CUNI
Part Description Socket Braze Pipe

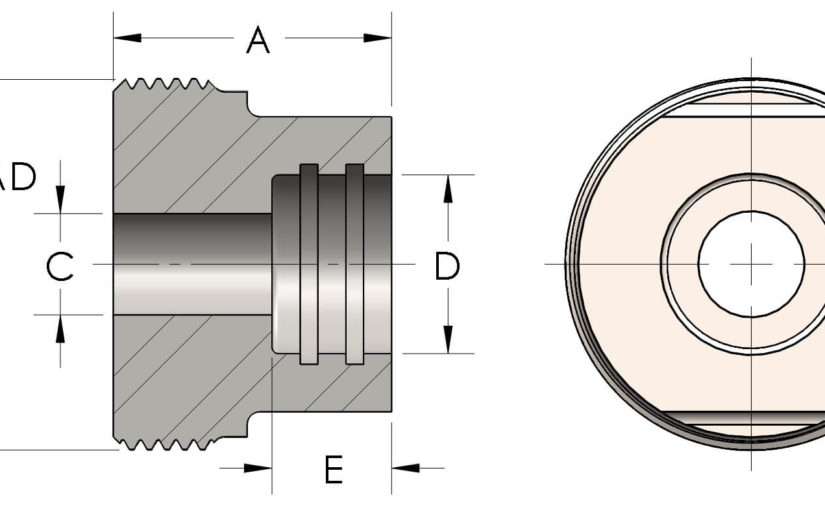

Dimensions

A 1.440
B-THREAD 2.000" - 12UN
C 0.63
D 1.053
E 0.69

General

Pressure Rating 4500 PSI
Threadpiece Material Copper Nickel 70/30, MIL-C--15726F, UNS C71500

cpvmfg.com | 484.731.4010

The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user. Caution: Do not mix or interchange valve components with those of other manufacturers.
