Fittings / O-SEAL® / 52T-6-CUNI

Socket Braze Pipe

Data sheet
[wp_objects_pdf]
American Engineering Trusted Wordwide ®

DATA SHEET

52T-6-CUNI
11/15/2025 4:32 PM

Product Category 52T-6-CUNI
Part Description Socket Braze Pipe

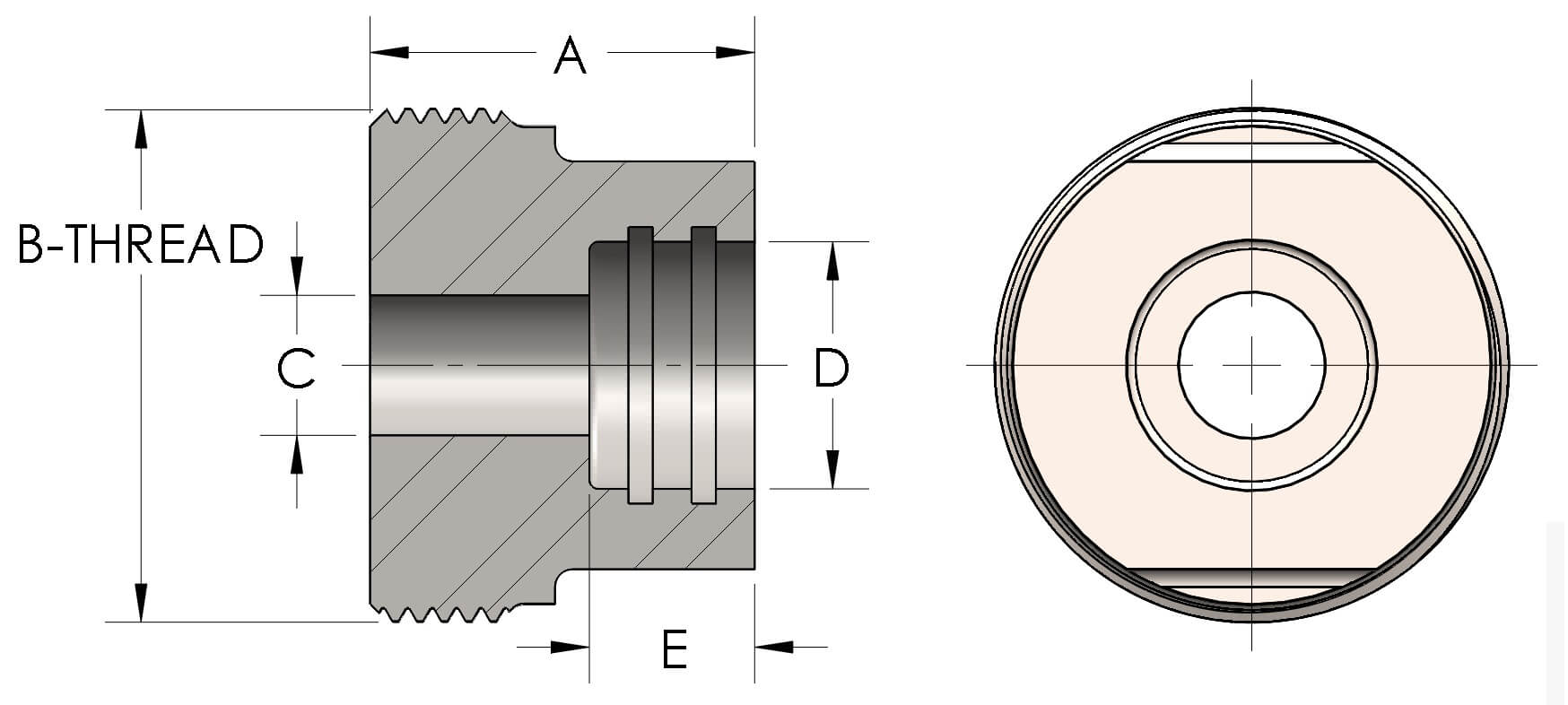

Dimensions

A 1.940
B-THREAD 2.750" - 12UN
C 1.19
D 1.663
E 0.94

General

Pressure Rating 3000 PSI
Threadpiece Material Copper Nickel 70/30, MIL-C--15726F, UNS C71500

cpvmfg.com | 484.731.4010

The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user. Caution: Do not mix or interchange valve components with those of other manufacturers.
