Fittings / O-SEAL® / 53T-8-M

Female Pipe Thread

Data sheet
[wp_objects_pdf]
American Engineering Trusted Wordwide ®

DATA SHEET

53T-8-M
11/15/2025 3:54 PM

Product Category 53T-8-M
Part Description Female Pipe Thread

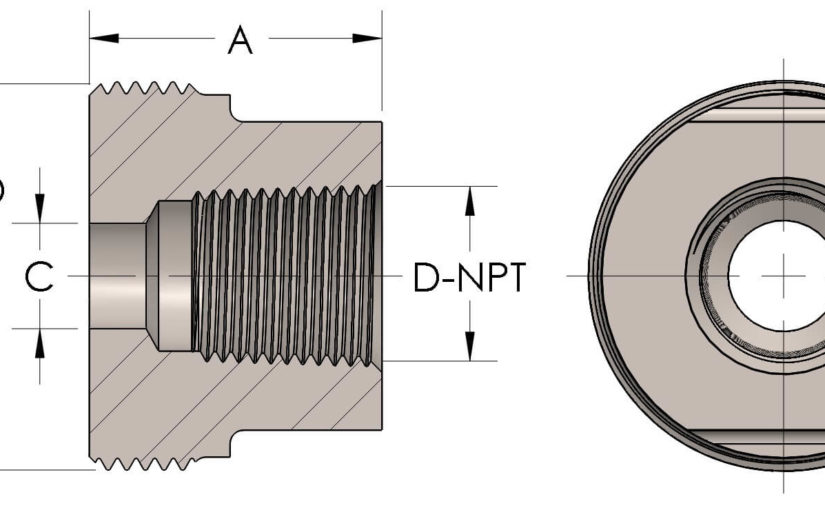

Dimensions

A 2.130
B-THREAD 3.750" - 12UN
C 1.75
D-THREAD 2.000" - 11.5

General

Pressure Rating 6000 PSI
Threadpiece Material Monel®, ASTM B164, UNS N04405

cpvmfg.com | 484.731.4010

The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user. Caution: Do not mix or interchange valve components with those of other manufacturers.
