Fittings / O-SEAL® / 54R-4-BR

Male Pipe Thread

Data sheet
American Engineering Trusted Wordwide ®

DATA SHEET

54R-4-BR
11/06/2025 9:55 PM

Product Category 54R-4-BR
Part Description Male Pipe Thread

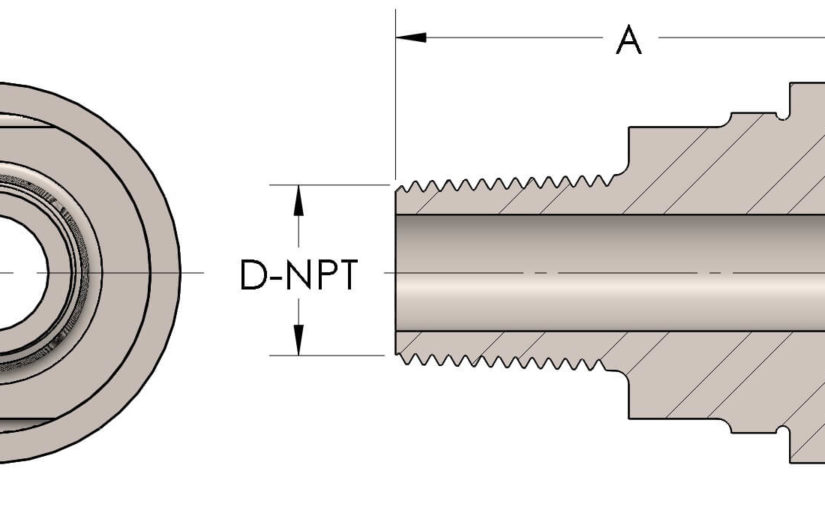

Dimensions

A 2.060
B 1.88
C 0.63
D-THREAD 3/4" - 14

General

Pressure Rating 4500 PSI
Tailpiece Material Naval Brass, ASTM B21, UNS C46400
O-Ring Material Viton® Fluorocarbon Type 1, Class 2 (90 durometer)

cpvmfg.com | 484.731.4010

The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user. Caution: Do not mix or interchange valve components with those of other manufacturers.
