Fittings / Direct Weld® / 57-2-1-CUNI

Direct Weld/Braze Insert (Male Pipe X Pipe SW)

Data sheet
American Engineering Trusted Wordwide ®

DATA SHEET

57-2-1-CUNI
11/06/2025 7:53 PM

Product Category 57-2-1-CUNI
Part Description Direct Weld/Braze Insert (Male Pipe X Pipe SW)

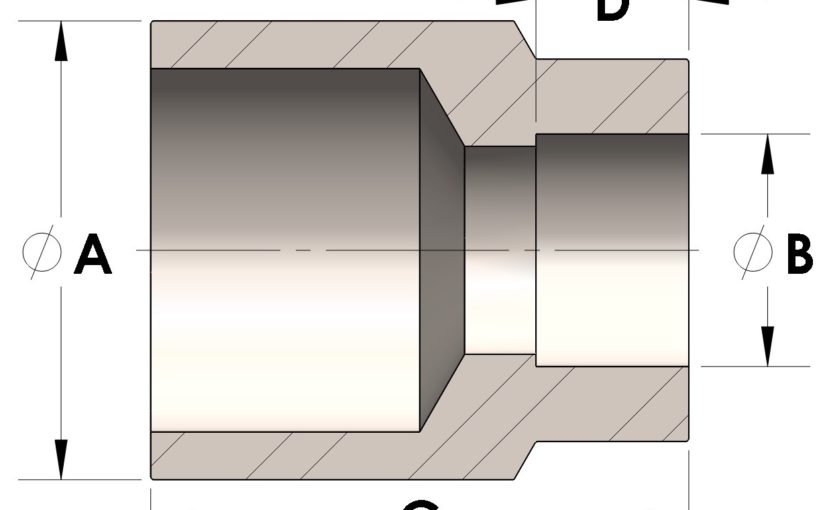

Dimensions

A 0.675
B 0.56
C 1.31
D 0.380

General

Pressure Rating 4500 PSI
Fitting Material Copper Nickel 70/30, MIL-C--15726F, UNS C71500

cpvmfg.com | 484.731.4010

The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user. Caution: Do not mix or interchange valve components with those of other manufacturers.
