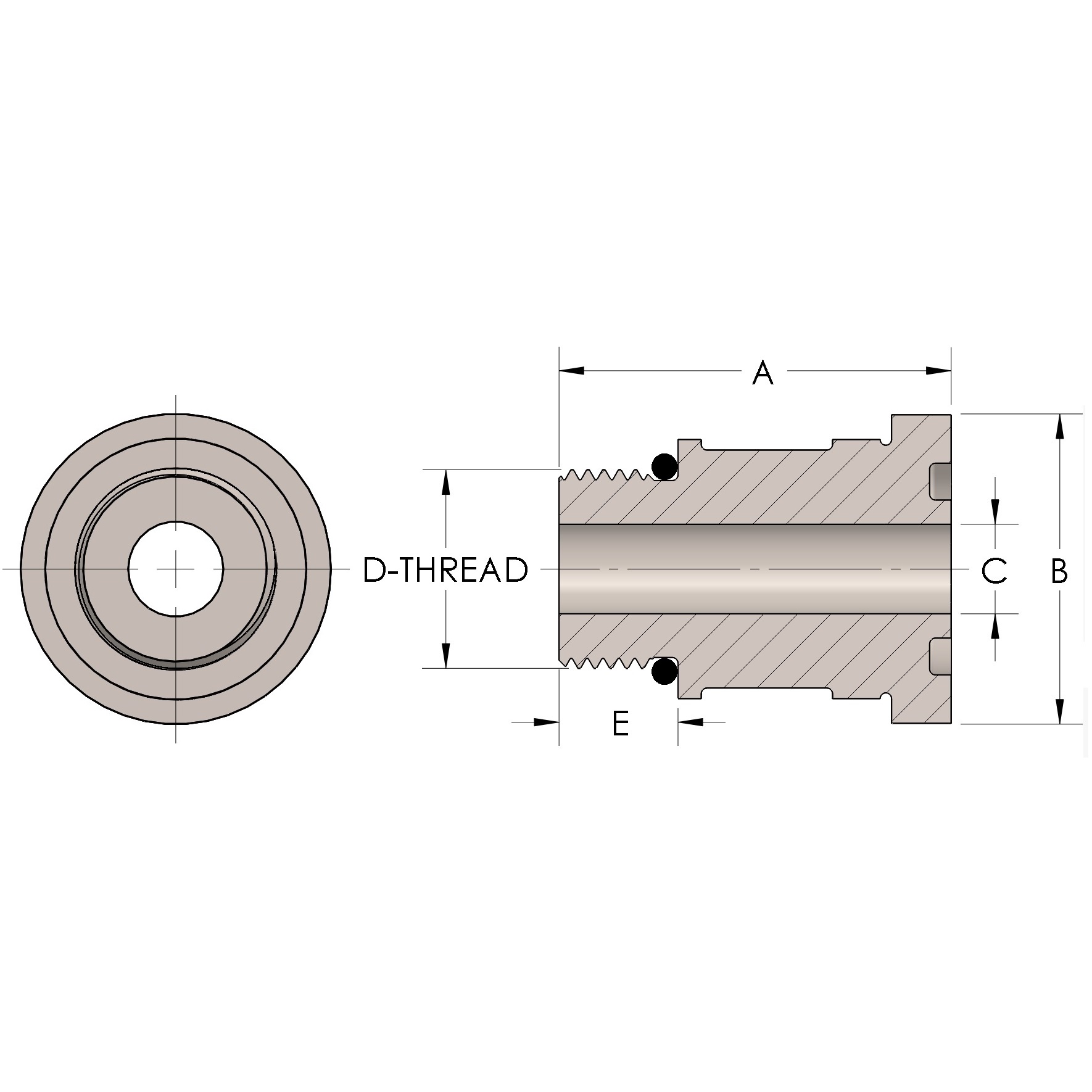

Dimensions
| A | 1.5 |
| B | 1.06 |
| C | 0.3 |
| D-THREAD | 9/16" - 18UNF |
| E | 0.43 |
General
| Pressure Rating | 6000 PSI |
| Tailpiece Material | Monel®, ASTM B164, UNS N04405 |
| O-Ring Material | Viton® Fluorocarbon Type 1, Class 2 (90 durometer) |
