Fittings / O-SEAL® / 59R-2-M

Male Straight Thread

Data sheet
American Engineering Trusted Wordwide ®

DATA SHEET

59R-2-M
11/08/2025 5:40 AM

Product Category 59R-2-M
Part Description Male Straight Thread

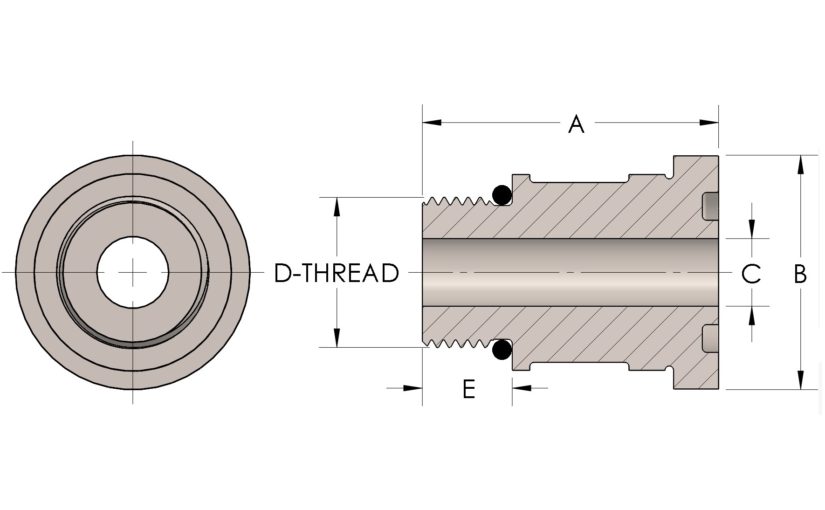

Dimensions

A 1.750
B 1.25
C 0.39
D-THREAD 3/4" - 16UNF
E 0.47

General

Pressure Rating 6000 PSI
Tailpiece Material Monel®, ASTM B164, UNS N04405
O-Ring Material Viton® Fluorocarbon Type 1, Class 2 (90 durometer)

cpvmfg.com | 484.731.4010

The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user. Caution: Do not mix or interchange valve components with those of other manufacturers.
