Fittings / O-SEAL® / 59R-5-SS316L

Male Straight Thread

Data sheet
American Engineering Trusted Wordwide ®

DATA SHEET

59R-5-SS316L
11/07/2025 9:57 AM

Product Category 59R-5-SS316L
Part Description Male Straight Thread

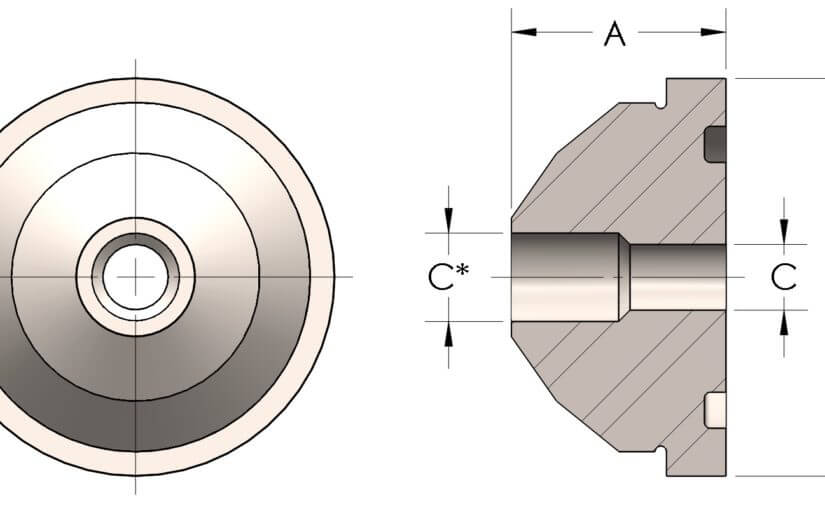

Dimensions

A 2.250
B 2.19
C 0.81
D-THREAD 1.625" - 12UN
E 0.63

General

Pressure Rating 6000 PSI
Tailpiece Material 316/L Stainless Steel, ASTM A276, UNS S31600/03
O-Ring Material Viton® Fluorocarbon Type 1, Class 2 (90 durometer)

cpvmfg.com | 484.731.4010

The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user. Caution: Do not mix or interchange valve components with those of other manufacturers.
