Fittings / O-SEAL® / 62R-0-BR

Male Pipe Weld

Data sheet
American Engineering Trusted Wordwide ®

DATA SHEET

62R-0-BR
11/07/2025 3:13 AM

Product Category 62R-0-BR
Part Description Male Pipe Weld

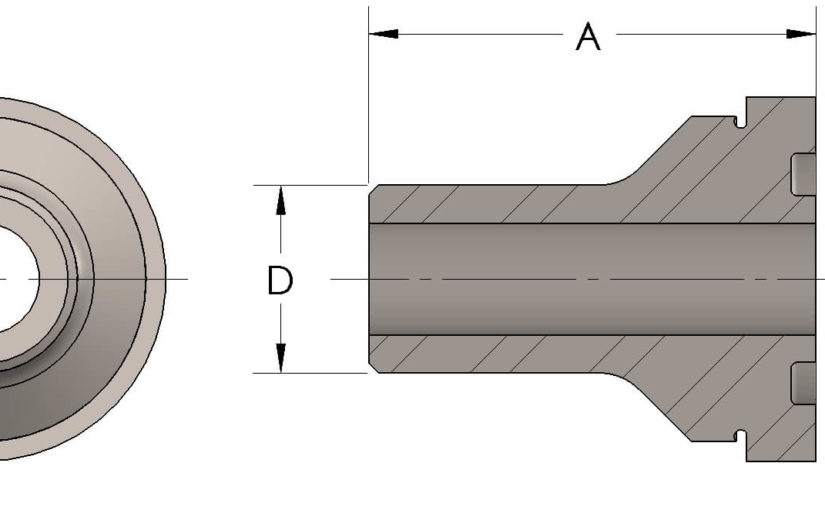

Dimensions

A 1.380
B 0.91
C 0.22
D 0.405

General

Pressure Rating 6000 PSI
Tailpiece Material Naval Brass, ASTM B21, UNS C46400
O-Ring Material Viton® Fluorocarbon Type 1, Class 2 (90 durometer)

cpvmfg.com | 484.731.4010

The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user. Caution: Do not mix or interchange valve components with those of other manufacturers.
