Fittings / O-SEAL® / 62T-1-SS316L

Male Pipe Weld

Data sheet
American Engineering Trusted Wordwide ®

DATA SHEET

62T-1-SS316L
11/06/2025 7:17 PM

Product Category 62T-1-SS316L
Part Description Male Pipe Weld

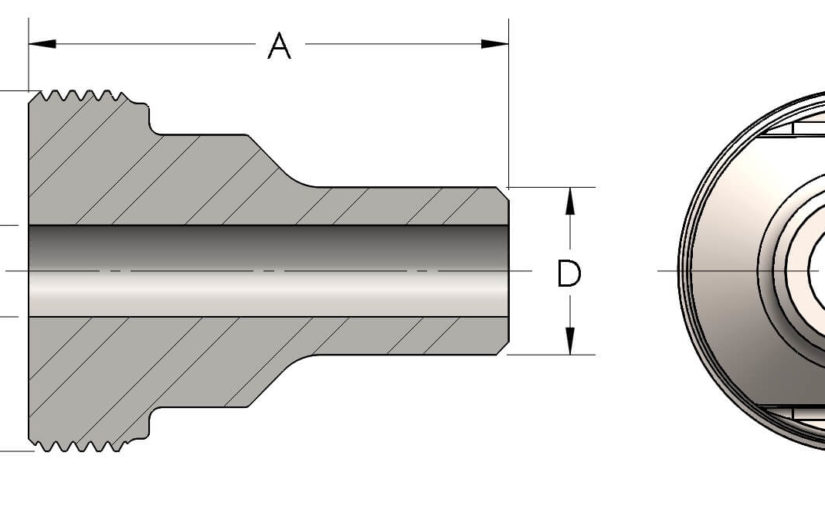

Dimensions

A 1.880
B-THREAD 1.188" - 12UN
C 0.31
D 0.540

General

Pressure Rating 6000 PSI
Threadpiece Material 316/L Stainless Steel, ASTM A276, UNS S31600/03

cpvmfg.com | 484.731.4010

The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user. Caution: Do not mix or interchange valve components with those of other manufacturers.
