Fittings / O-SEAL® / 63T-2-S

Male Tube Weld

Data sheet
American Engineering Trusted Wordwide ®

DATA SHEET

63T-2-S
11/07/2025 8:26 PM

Product Category 63T-2-S
Part Description Male Tube Weld

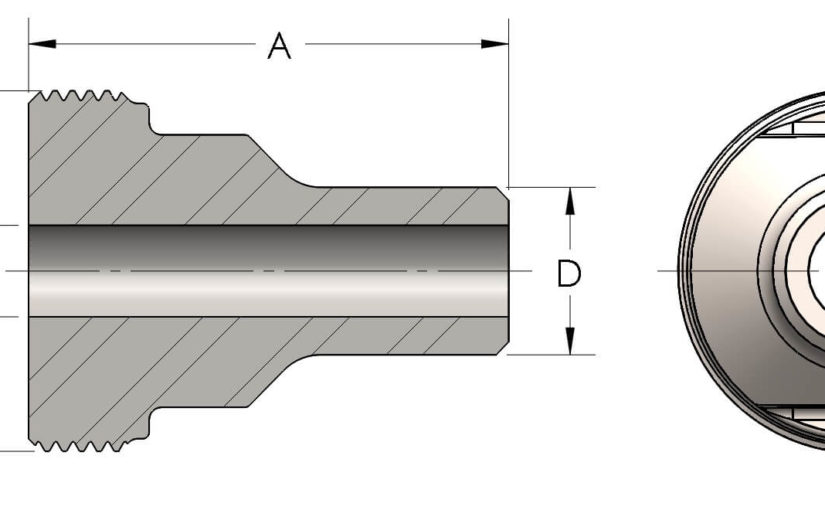

Dimensions

A 2.060
B-THREAD 1.375" - 12UNF
C 0.34
D 0.500

General

Pressure Rating 6000 PSI
Threadpiece Material Carbon Steel, ASTM A108

cpvmfg.com | 484.731.4010

The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user. Caution: Do not mix or interchange valve components with those of other manufacturers.
