American Engineering Trusted Wordwide ®DATA SHEET
8-08SAU-08
11/15/2025 3:44 PM
| Product Category | 8-08SAU-08 |
| Product Line | Mark VIII® Shutoff Valve (8-S Series) |
| Part Description | Angle Shutoff Valve with Mark VIII® Ends |

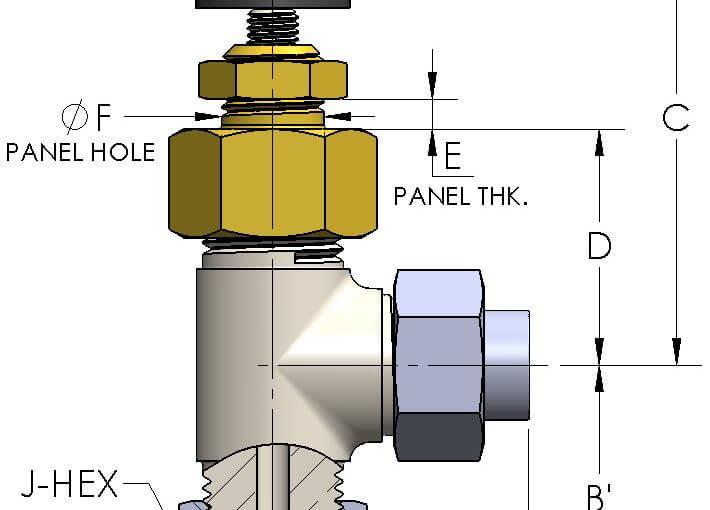

Dimensions
| Orifice | 0.297 |
| A | 0.500 |
| B' | 1.69 |
| C (Open) | 3.47 |
| C (Closed) | 3.19 |
| D | 1.660 |
| E | 0.38 |
| F | 0.78 |
| G | 1.88 |
| H | 0.31 |
| J-HEX | 0.94 |
General
| Pressure Rating | 3000 PSI |
| Temperature Range | -15°F to 400°F (-26°C to 204°C) |
| Standard Soft Goods | [-C] Viton® O-Rings |
| Cartridge Type | Shutoff |
| Connection Type | Mark VIII® Union Thread |
| Tube O.D. | 1/2" |
| Body Material | 316/L Stainless Steel, ASTM A276, UNS S31603 |
| Bonnet Material | Nickel Aluminum Bronze, ASTM B150, UNS C63200 |
Options
| Optional Soft Goods | [-B] Buna-N O-Rings, [-D] EPDM O-Rings |
