American Engineering Trusted Wordwide ®DATA SHEET
980-B-2-M
11/16/2025 11:43 PM
| Product Category | 980-B-2-M |
| Product Line | Instrument Valves (900 Series) |
| Part Description | Globe Instrument Valve with Flareless X Straight Thread Ends |

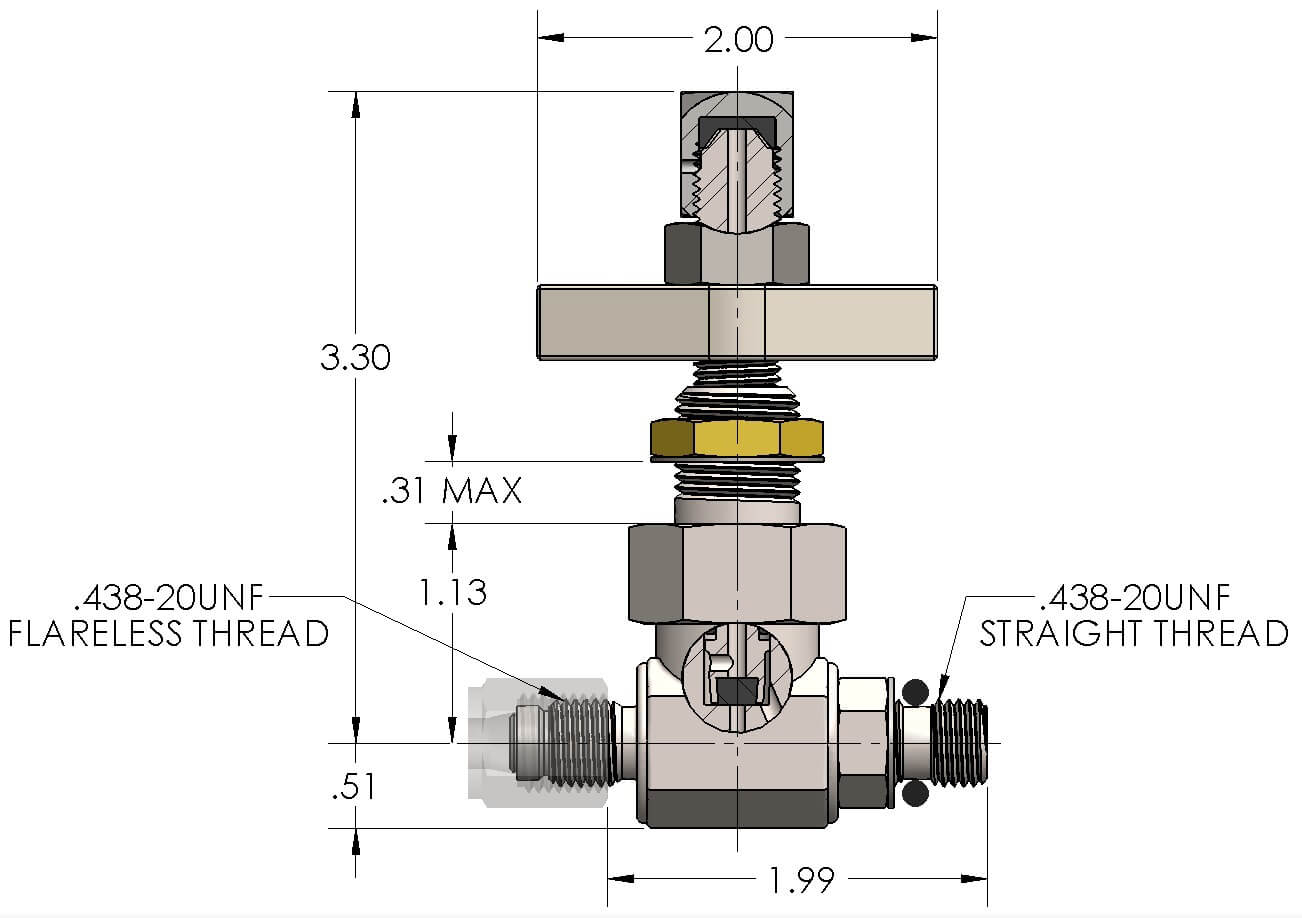

Dimensions
General
| Pressure Rating | 6000 PSI |
| Temperature Range | -30°F to 250°F (-34°C to 121°C) |
| Standard Soft Goods | Buna-N O-Rings |
| Cartridge Type | Shutoff |
| Connection Type | Compression X Straight Thread |
| Connection Size | 1/4 Tube X .438"-20UNF |
| Body Material | Monel®, ASTM B564, UNS N04400 |
| Bonnet Material | 416 Stainless Steel, ASTM A582, UNS S41600 |
| Approved per | NSSC 803-6397304F |
Options
| Optional Soft Goods | Viton® O-Rings, EPDM O-Rings |
