American Engineering Trusted Wordwide ®DATA SHEET
980-UNION-1-SS
11/18/2025 1:08 AM
| Product Category | 980-UNION-1-SS |
| Product Line | Instrument Valves (900 Series) |
| Part Description | Globe Instrument Valve with O-ring Face Seal Union Ends |

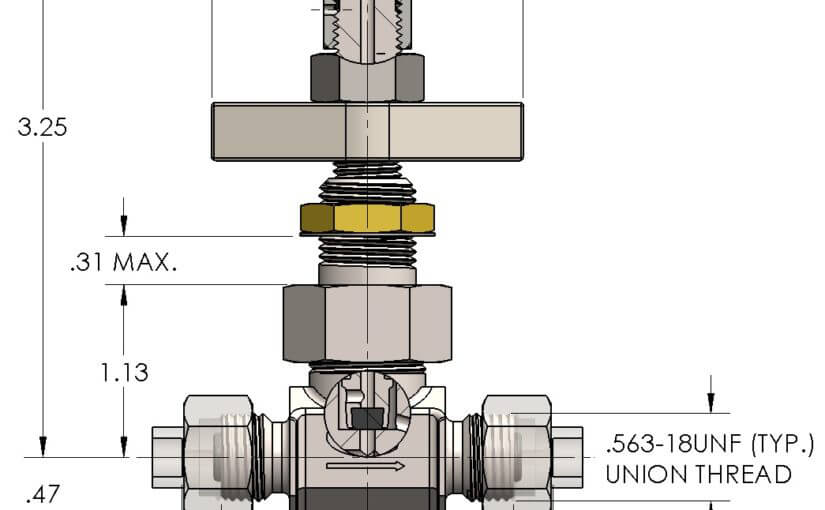

Dimensions
General
| Pressure Rating | 6000 PSI |
| Temperature Range | -15°F to 250°F (-26°C to 121°C) |
| Standard Soft Goods | Viton® O-Rings |
| Cartridge Type | Shutoff |
| Connection Type | O-ring Face Seal Union Thread |
| Connection Size | 1/4" Tube O.D. |
| Body Material | 316/L Stainless Steel, ASTM A182, UNS S31603 |
| Bonnet Material | 416 Stainless Steel, ASTM A582, UNS S41600 |
| Approved per | MIL-DTL-24578C |
Options
| Optional Soft Goods | Buna-N O-Rings, EPDM O-Rings |
