Valves / Needle / G0NGPS-04

Globe Needle Valve with Socketweld Pipe Ends

Data sheet
American Engineering Trusted Wordwide ®

DATA SHEET

G0NGPS-04
11/06/2025 8:15 PM

Product Category G0NGPS-04
Product Line G-Series® Needle Valve (G-N Series)
Part Description Globe Needle Valve with Socketweld Pipe Ends

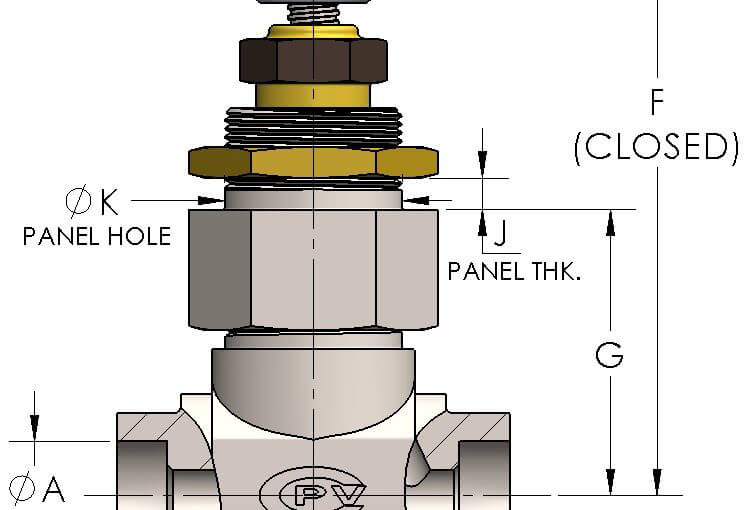

Dimensions

Orifice 0.218
A (NPS) 0.540
B 2.38
D 0.380
E 3.50
F 4.36
G 1.69
J (max.) 0.25
K 1.2

General

Pressure Rating 6000 PSI
Temperature Range -15°F to 400°F (-26°C to 204°C)
Standard Soft Goods [-G] Polyurethane® Packing and Viton® O-Rings
Cartridge Type Needle
Connection Type Socketweld Pipe
Connection Size 1/4"
Body Material 316/L Stainless Steel, ASTM A182, UNS S31603
Bonnet Material 316/L Stainless Steel, ASTM A276, UNS S31603

Options

[-VC] Vacuum Service Option to add additional softgoods for internal vacuum service.
Optional Soft Goods [-B] Polyurethane® Packing and Buna-N O-Rings, [-C] Viton® Packing & O-Rings, [-D] EPDM Packing & O-Rings
