G1NGPF-04
11/07/2025 12:49 AM
| Product Category | G1NGPF-04 |
| Product Line | G-Series® Needle Valve (G-N Series) |
| Part Description | Globe Needle Valve with Female Pipe Thread (NPT) Ends |

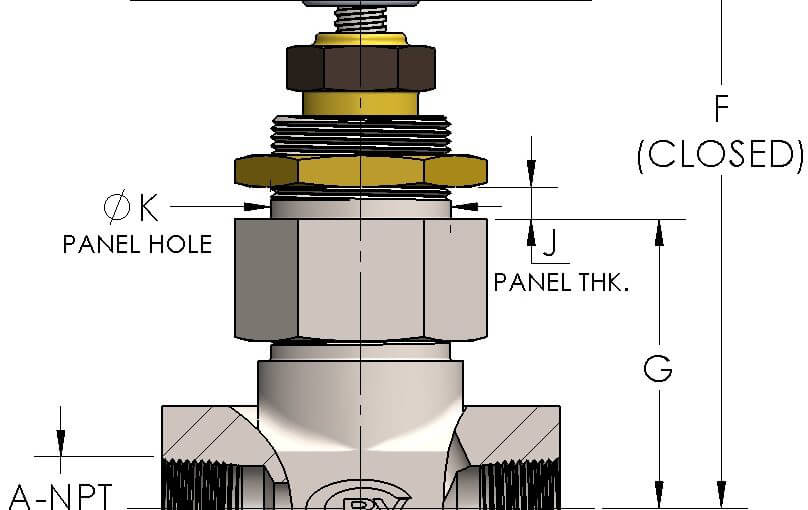

Dimensions
| Orifice | 0.313 |
| A-NPT : | 1/4"-18 |
| B | 2.75 |
| E | 3.50 |
| F | 4.56 |
| G | 1.81 |
| J (max.) | 0.44 |
| K | 1.2 |
General
| Pressure Rating | 6000 PSI |
| Temperature Range | -15°F to 400°F (-26°C to 204°C) |
| Standard Soft Goods | [-G] Polyurethane® Packing and Viton® O-Rings |
| Cartridge Type | Needle |
| Connection Type | Female Pipe Thread (NPT) |
| Connection Size | 1/4" |
| Body Material | 316/L Stainless Steel, ASTM A182, UNS S31603 |
| Bonnet Material | 316/L Stainless Steel, ASTM A276, UNS S31603 |
Options
| [-VC] Vacuum Service | Option to add additional softgoods for internal vacuum service. |
| Optional Soft Goods | [-B] Polyurethane® Packing and Buna-N O-Rings, [-C] Viton® Packing & O-Rings, [-D] EPDM Packing & O-Rings |
