Fittings / Mark VIII® / H805-24-S

Straight Thread Plug

Data sheet
American Engineering Trusted Wordwide ®

DATA SHEET

H805-24-S
11/06/2025 9:55 PM

Product Category H805-24-S
Part Description Straight Thread Plug

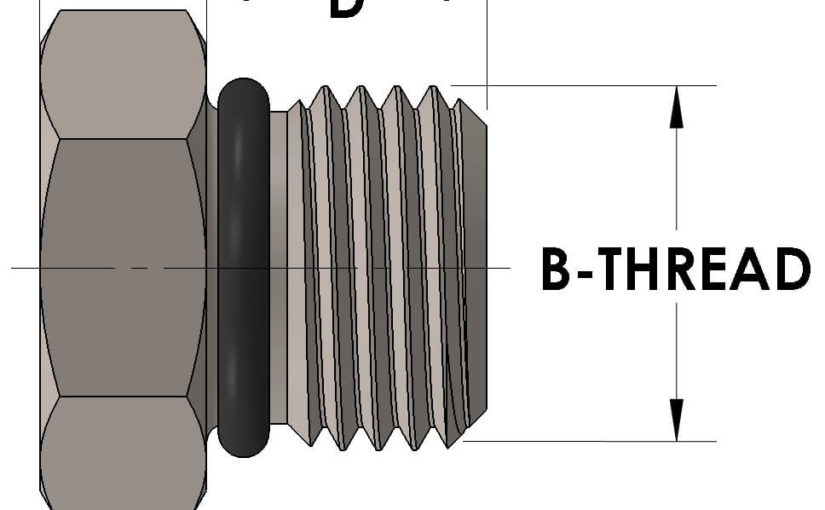

Dimensions

B-THREAD 1.875" - 12UN
C 1.00
D 0.630
G-HEX 2.13

General

Pressure Rating 6000 PSI
Threadpiece Material Carbon Steel, ASTM A108
O-Ring Material Viton® Fluorocarbon Type 1, Class 2 (90 durometer)

cpvmfg.com | 484.731.4010

The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user. Caution: Do not mix or interchange valve components with those of other manufacturers.
