Fittings / Mark VIII® / H809-10-S

Socketweld/braze Tube Cross Assembly

Data sheet
[wp_objects_pdf]
American Engineering Trusted Wordwide ®

DATA SHEET

H809-10-S
11/16/2025 11:14 PM

Product Category H809-10-S
Part Description Socketweld/braze Tube Cross Assembly

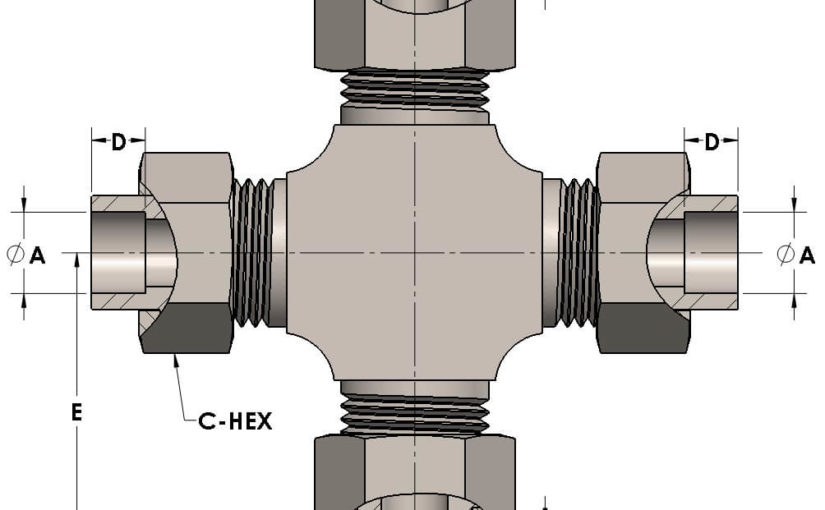

Dimensions

A 0.630
C-HEX 1.13
D 0.380
E 2.06

General

Pressure Rating 4500 PSI
Assembly Material Carbon Steel, ASTM A108
O-Ring Material Viton® Fluorocarbon Type 1, Class 2 (90 durometer)
Connection 1 Type Female Tube Socket
Connection 1 Size 5/8" Tube O.D. (-10)
Connection 2 Type Female Tube Socket
Connection 2 Size 5/8" Tube O.D. (-10)
Connection 3 Type Female Tube Socket
Connection 3 Size 5/8" Tube O.D. (-10)
Connection 4 Type Female Tube Socket
Connection 4 Size 5/8" Tube O.D. (-10)
