H810-06-06-04-M
11/17/2025 10:21 PM
| Product Category | H810-06-06-04-M |
| Part Description | Socketweld/braze Tube Tee Assembly |

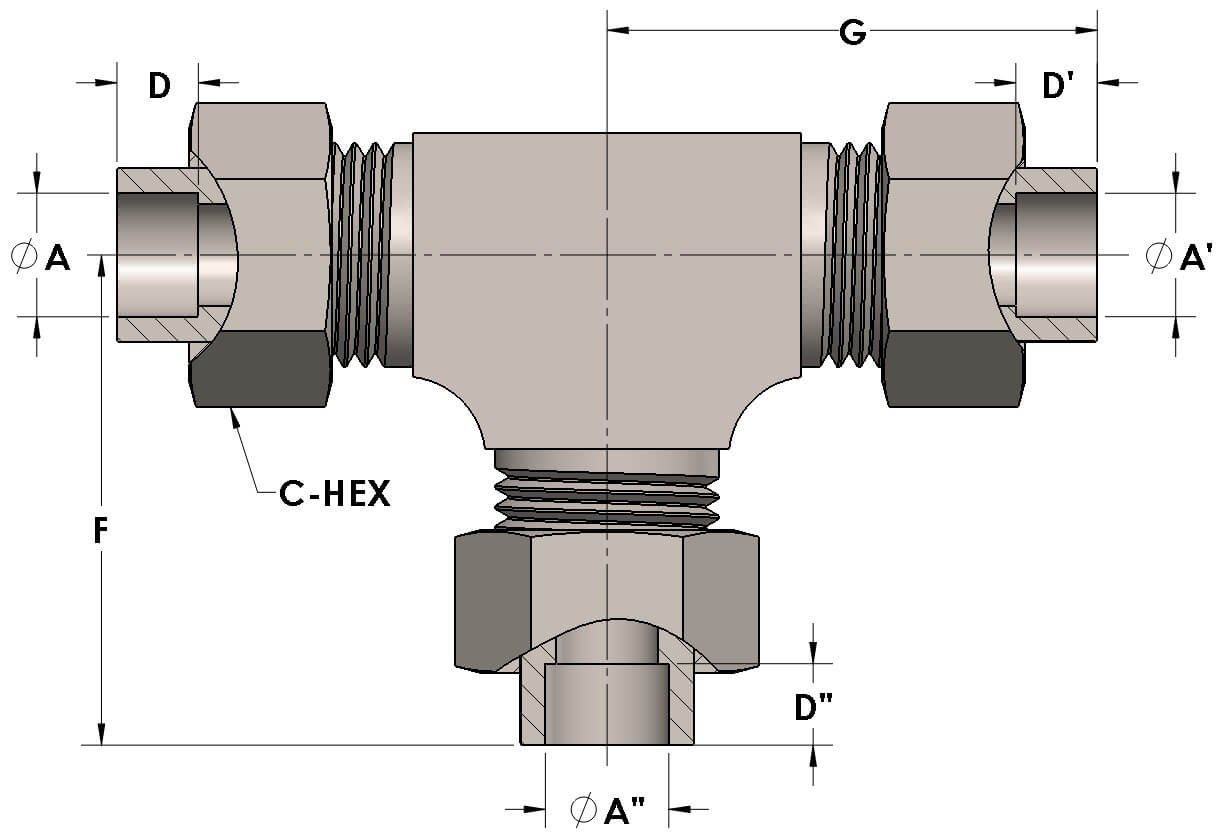

Dimensions
| A | 0.380 |
| A' | 0.380 |
| A" | 0.250 |
| C-HEX | 0.81 |
| D | 0.250 |
| D' | 0.250 |
| D" | 0.190 |
| F | 1.50 |
| G | 1.5 |
General
| Pressure Rating | 6000 PSI |
| Tailpiece Material | Monel®, ASTM B164, UNS N04405 |
| Threadpiece Material | Monel®, ASTM B564, UNS N04400 |
| O-Ring Material | Viton® Fluorocarbon Type 1, Class 2 (90 durometer) |
| Connection 1 Type | Female Tube Socket |
| Connection 1 Size | 3/8" Tube O.D. (-06) |
| Connection 2 Type | Female Tube Socket |
| Connection 2 Size | 3/8" Tube O.D. (-06) |
| Connection 3 Type | Female Tube Socket |
| Connection 3 Size | 1/4 Tube O.D. (-04) |
