Fittings / Mark VIII® / H811-16-16-16-M

Tube to Male Pipe Thread Branch Tee Assembly

Data sheet
[wp_objects_pdf]
American Engineering Trusted Wordwide ®

DATA SHEET

H811-16-16-16-M
11/30/2025 5:12 PM

Product Category H811-16-16-16-M
Part Description Tube to Male Pipe Thread Branch Tee Assembly

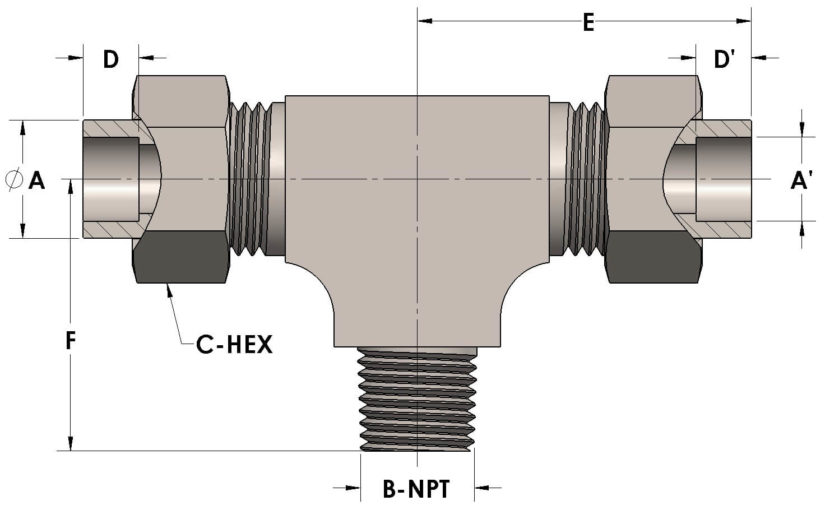

Dimensions

A 1.000
A' 1.000
B-NPT 1.000" - 11.5
C-HEX 1.63
D 0.500
D' 0.500
E 2.75
F 1.94

General

Pressure Rating 6000 PSI
Tailpiece Material Monel®, ASTM B164, UNS N04405
Threadpiece Material Monel®, ASTM B564, UNS N04400
O-Ring Material Viton® Fluorocarbon Type 1, Class 2 (90 durometer)
Connection 1 Type Female Tube Socket
Connection 1 Size 1" Tube O.D. (-16)
Connection 2 Type Female Tube Socket
Connection 2 Size 1" Tube O.D. (-16)

cpvmfg.com | 484.731.4010

The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user. Caution: Do not mix or interchange valve components with those of other manufacturers.
