Fittings / Mark VIII® / H812-08-06-08-M

Tube to Male Pipe Thread Run Tee Assembly

Data sheet
American Engineering Trusted Wordwide ®

DATA SHEET

H812-08-06-08-M
11/07/2025 2:12 AM

Product Category H812-08-06-08-M
Part Description Tube to Male Pipe Thread Run Tee Assembly

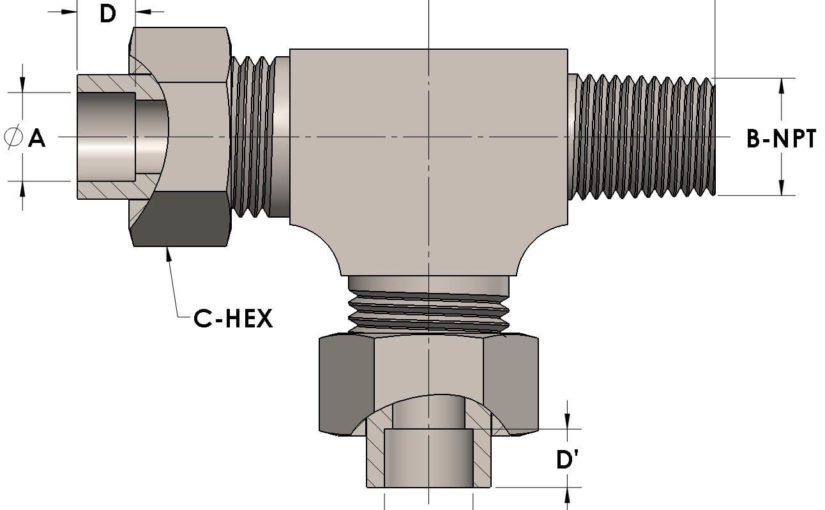

Dimensions

A 0.500
A' 0.500
B-NPT 3/8" - 18
C-HEX 0.94
D 0.310
D' 0.310
E 1.69
F 1.19

General

Pressure Rating 4500 PSI
Tailpiece Material Monel®, ASTM B164, UNS N04405
Threadpiece Material Monel®, ASTM B564, UNS N04400
O-Ring Material Viton® Fluorocarbon Type 1, Class 2 (90 durometer)
Connection 1 Type Female Tube Socket
Connection 1 Size 1/2" Tube O.D. (-08)
Connection 3 Type Female Tube Socket
Connection 3 Size 1/2" Tube O.D. (-08)
