Fittings / Mark VIII® / H812-12-12-12-SS316L

Tube to Male Pipe Thread Run Tee Assembly

Data sheet
[wp_objects_pdf]
American Engineering Trusted Wordwide ®

DATA SHEET

H812-12-12-12-SS316L
11/16/2025 10:32 PM

Product Category H812-12-12-12-SS316L
Part Description Tube to Male Pipe Thread Run Tee Assembly

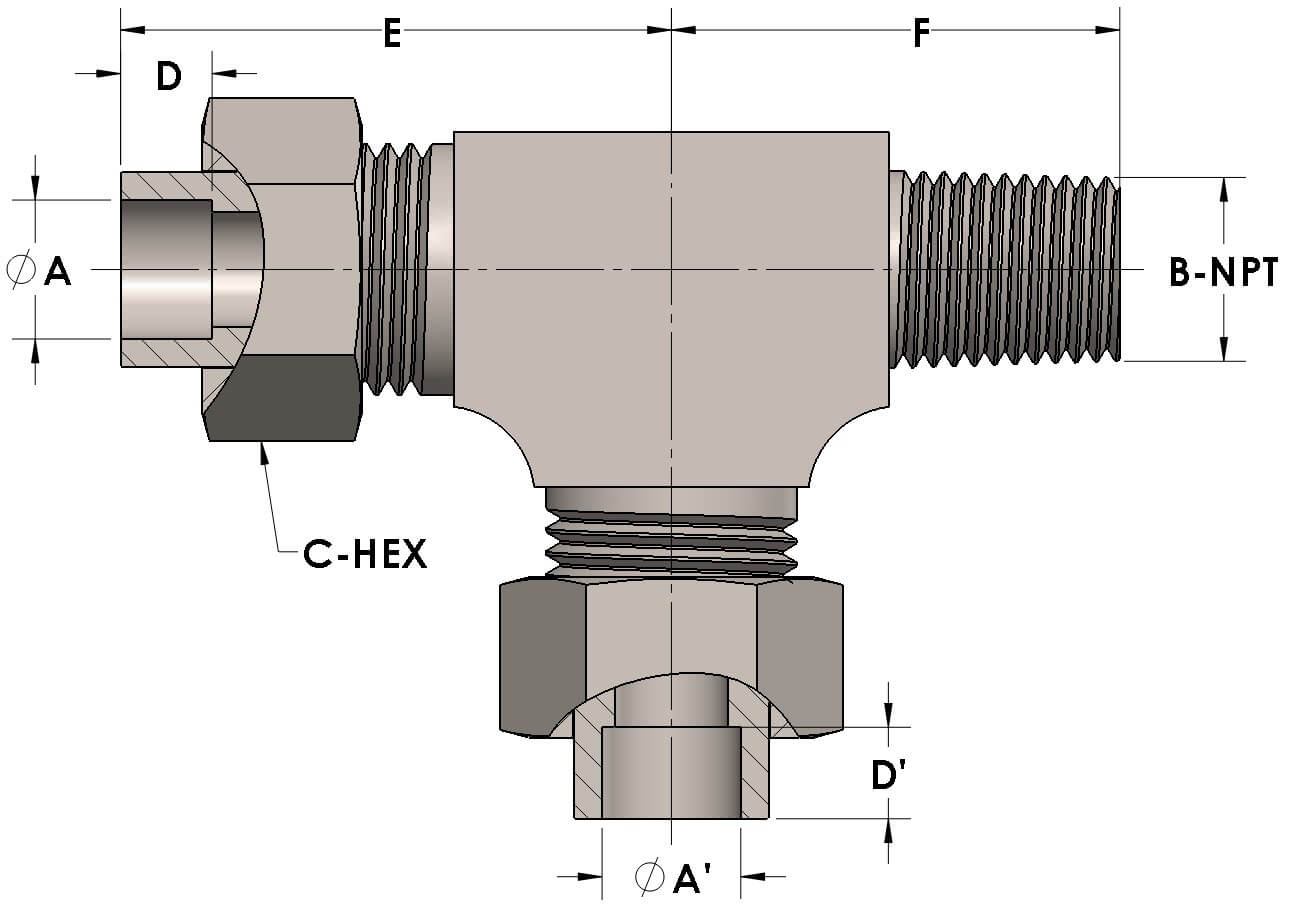

Dimensions

A 0.750
A' 0.750
B-NPT 3/4" - 14
C-HEX 1.38
D 0.440
D' 0.440
E 2.25
F 1.56

General

Pressure Rating 6000 PSI
Assembly Material 316/L Stainless Steel, ASTM A276, UNS S31600/03
O-Ring Material Viton® Fluorocarbon Type 1, Class 2 (90 durometer)
Connection 1 Type Female Tube Socket
Connection 1 Size 3/4" Tube O.D. (-12)
Connection 3 Type Female Tube Socket
Connection 3 Size 3/4" Tube O.D. (-12)

cpvmfg.com | 484.731.4010

The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user. Caution: Do not mix or interchange valve components with those of other manufacturers.
