Fittings / Mark VIII® / H814-06-04-06-SS316L

Tube to Female Pipe Thread Run Tee Assembly

Data sheet
American Engineering Trusted Wordwide ®

DATA SHEET

H814-06-04-06-SS316L
11/06/2025 6:50 PM

Product Category H814-06-04-06-SS316L
Part Description Tube to Female Pipe Thread Run Tee Assembly

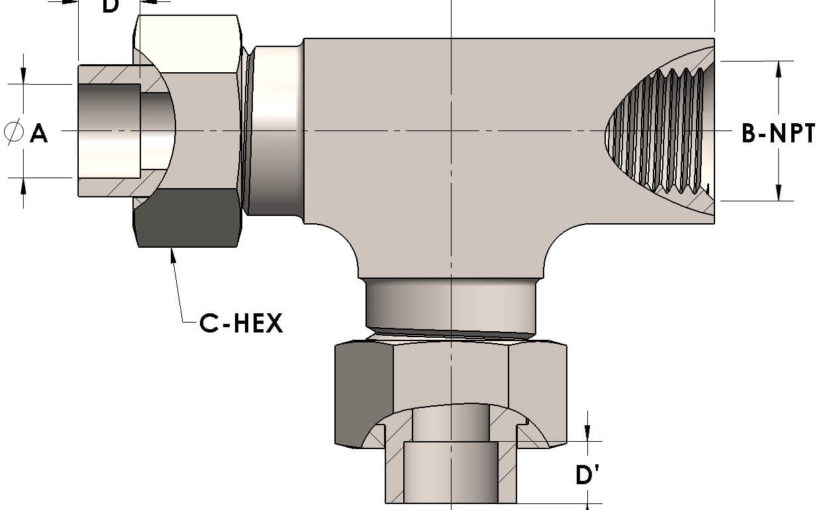

Dimensions

A 0.380
A' 0.380
B-NPT 1/4" - 18
C-HEX 0.81
D 0.250
D' 0.250
E 1.50
F 1.06

General

Pressure Rating 6000 PSI
Assembly Material 316/L Stainless Steel, ASTM A276, UNS S31600/03
O-Ring Material Viton® Fluorocarbon Type 1, Class 2 (90 durometer)
Connection 1 Type Female Tube Socket
Connection 1 Size 3/8" Tube O.D. (-06)
Connection 3 Type Female Tube Socket
Connection 3 Size 3/8" Tube O.D. (-06)
