Fittings / Mark VIII® / H815-24-24-24-SS316L

Tube to Male Straight Thread Branch Tee Assembly

Data sheet
American Engineering Trusted Wordwide ®

DATA SHEET

H815-24-24-24-SS316L
11/07/2025 6:03 AM

Product Category H815-24-24-24-SS316L
Part Description Tube to Male Straight Thread Branch Tee Assembly

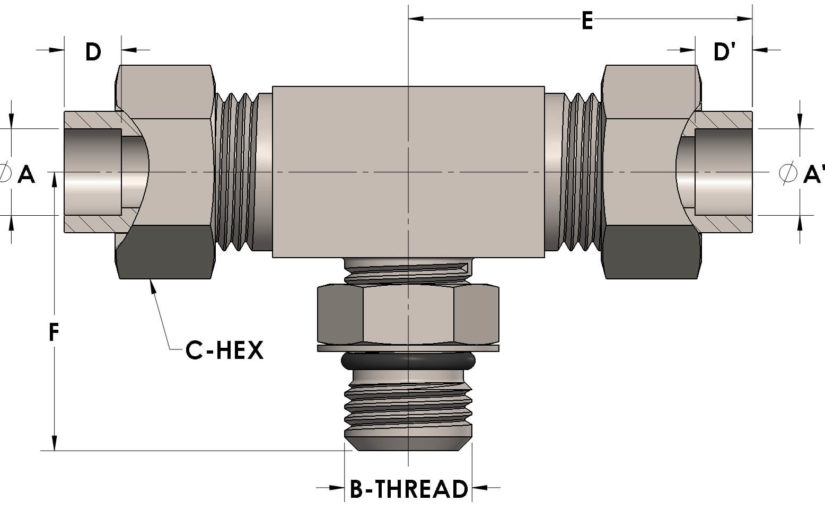

Dimensions

A 1.500
A' 1.500
B-THREAD 1.875" - 12UN
C-HEX 2.38
D 0.630
D' 0.630
E 3.31
F 2.44

General

Pressure Rating 3000 PSI
Assembly Material 316/L Stainless Steel, ASTM A276, UNS S31600/03
O-Ring Material Viton® Fluorocarbon Type 1, Class 2 (90 durometer)
Connection 1 Type Female Tube Socket
Connection 1 Size 1.50" Tube O.D. (-24)
Connection 2 Type Female Tube Socket
Connection 2 Size 1.50" Tube O.D. (-24)

cpvmfg.com | 484.731.4010

The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user. Caution: Do not mix or interchange valve components with those of other manufacturers.
