Fittings / Mark VIII® / H816-06-06-06-M

Tube to Male Straight Thread Run Tee Assembly

Data sheet
American Engineering Trusted Wordwide ®

DATA SHEET

H816-06-06-06-M
11/07/2025 9:15 AM

Product Category H816-06-06-06-M
Part Description Tube to Male Straight Thread Run Tee Assembly

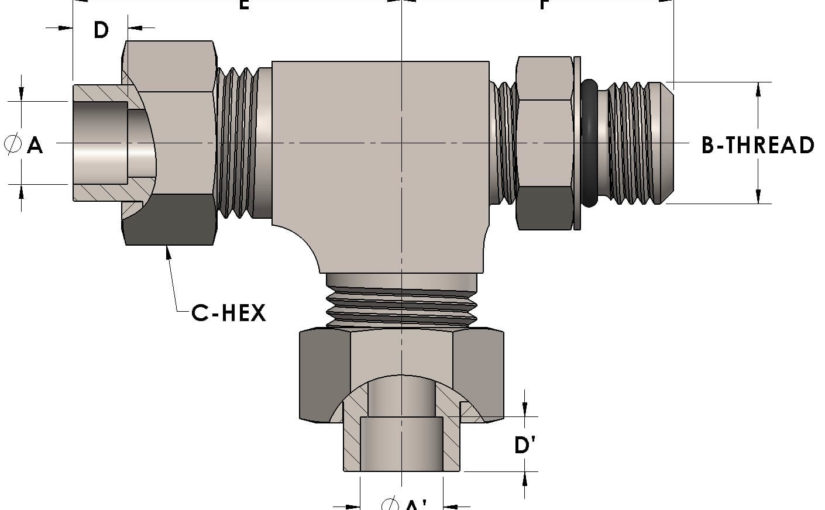

Dimensions

A 0.380
A' 0.380
B-THREAD .563" - 18UNF
C-HEX 0.81
D 0.250
D' 0.250
E 1.50
F 1.25

General

Pressure Rating 6000 PSI
Tailpiece Material Monel®, ASTM B164, UNS N04405
Threadpiece Material Monel®, ASTM B564, UNS N04400
O-Ring Material Viton® Fluorocarbon Type 1, Class 2 (90 durometer)
Connection 1 Type Female Tube Socket
Connection 1 Size 3/8" Tube O.D. (-06)
Connection 3 Type Female Tube Socket
Connection 3 Size 3/8" Tube O.D. (-06)
