Fittings / Direct Weld® / H819-04-SS316L

Direct Socketweld/Braze Cross (Tube)

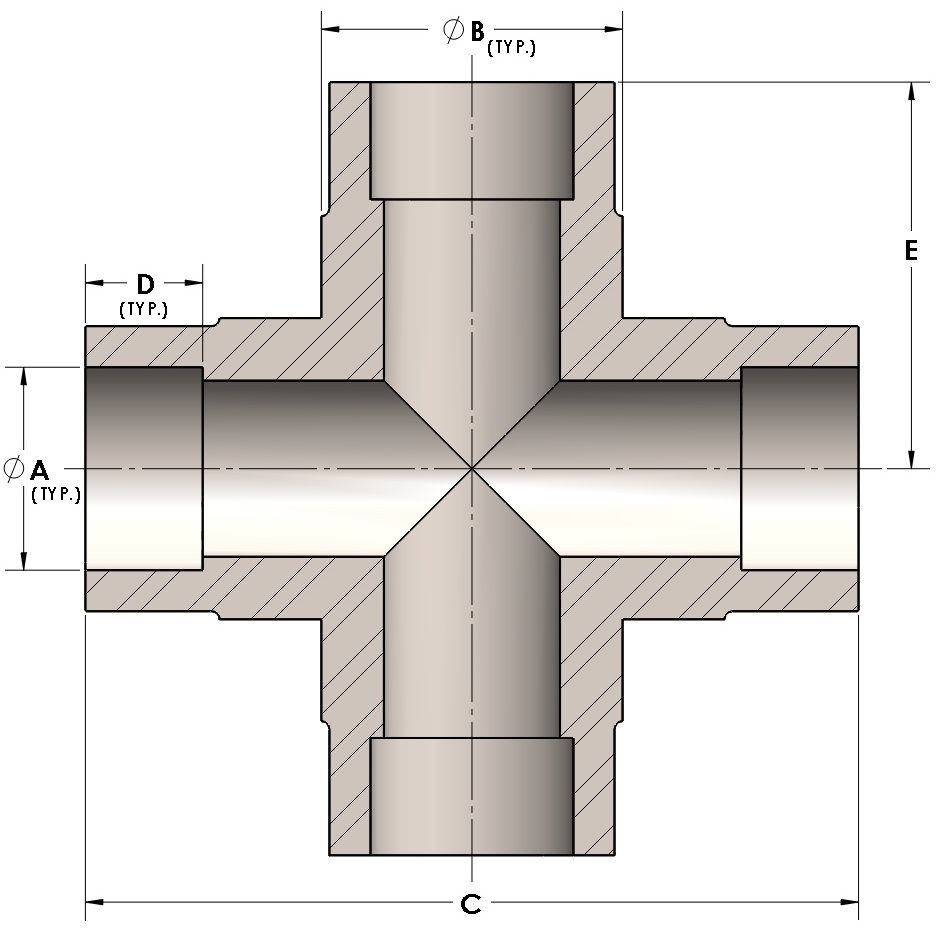

Dimensions

A 0.25
B 0.63
C 1.63
D 0.19
E 0.81
F 1.13

General

Pressure Rating 6000 PSI
Fitting Material 316/L Stainless Steel, ASTM A276, UNS S31600/03
