Fittings / Mark VIII® / H820-04-02-M

Socketweld/braze Tube Elbow Assembly

Data sheet
American Engineering Trusted Wordwide ®

DATA SHEET

H820-04-02-M
11/07/2025 3:26 PM

Product Category H820-04-02-M
Part Description Socketweld/braze Tube Elbow Assembly

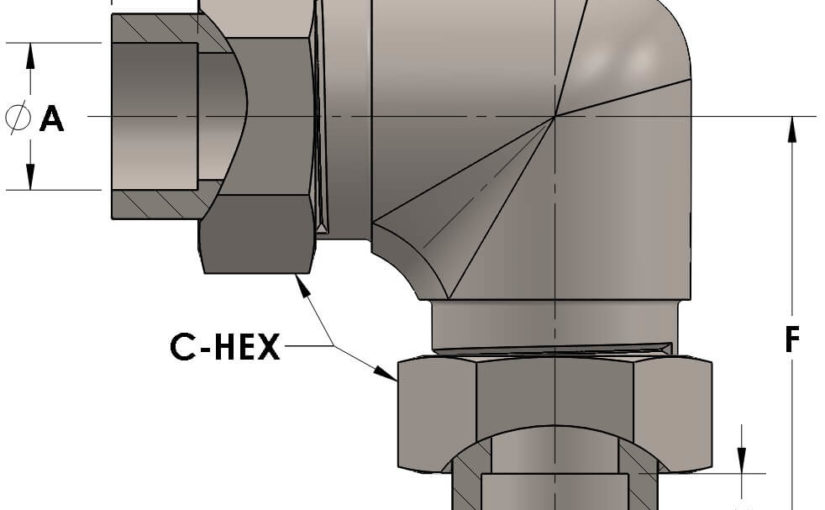

Dimensions

A 0.250
B 0.13
C-HEX 0.63
D 0.190
E 0.19
F 1.19
G 1.19

General

Pressure Rating 6000 PSI
Tailpiece Material Monel®, ASTM B164, UNS N04405
Threadpiece Material Monel®, ASTM B564, UNS N04400
O-Ring Material Viton® Fluorocarbon Type 1, Class 2 (90 durometer)
Connection 1 Type Female Tube Socket
Connection 1 Size 1/4” Tube O.D. (-04)
Connection 2 Type Female Tube Socket
Connection 2 Size 1/8” Tube O.D. (-02)

cpvmfg.com | 484.731.4010

The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user. Caution: Do not mix or interchange valve components with those of other manufacturers.
