Fittings / Mark VIII® / H821-24-24-SS316L

Tube to Male Pipe Thread Elbow Assembly

Data sheet
American Engineering Trusted Wordwide ®

DATA SHEET

H821-24-24-SS316L
11/06/2025 8:30 PM

Product Category H821-24-24-SS316L
Part Description Tube to Male Pipe Thread Elbow Assembly

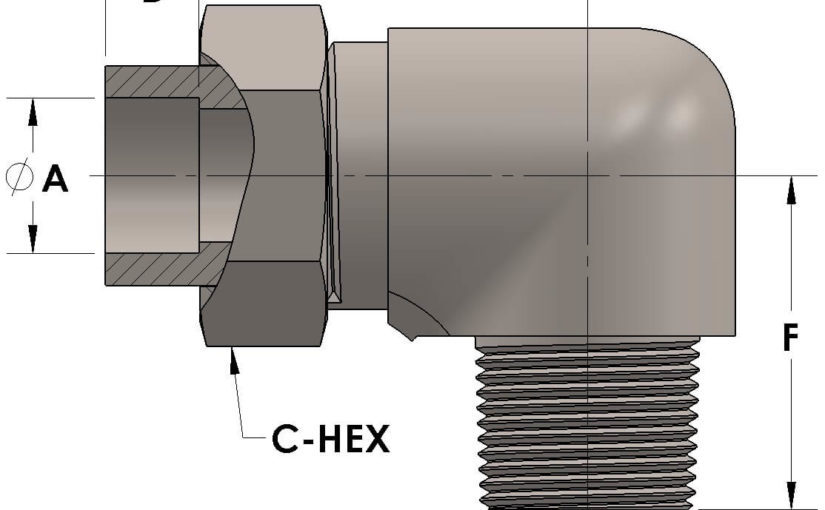

Dimensions

A 1.500
B-NPT 1.500" - 11.5
C-HEX 2.38
D 0.630
E 3.31
F 2.38

General

Pressure Rating 3000 PSI
Assembly Material 316/L Stainless Steel, ASTM A276, UNS S31600/03
O-Ring Material Viton® Fluorocarbon Type 1, Class 2 (90 durometer)
Connection 1 Type Female Tube Socket
Connection 1 Size 1.50" Tube O.D. (-24)
Connection 2 Type Male Pipe Thread
Connection 2 Size 1.50" NPT (-24)

cpvmfg.com | 484.731.4010

The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user. Caution: Do not mix or interchange valve components with those of other manufacturers.
