Fittings / Mark VIII® / H822-06-04-S

Tube to Female Pipe Thread Elbow Assembly

Data sheet
American Engineering Trusted Wordwide ®

DATA SHEET

H822-06-04-S
11/06/2025 6:34 PM

Product Category H822-06-04-S
Part Description Tube to Female Pipe Thread Elbow Assembly

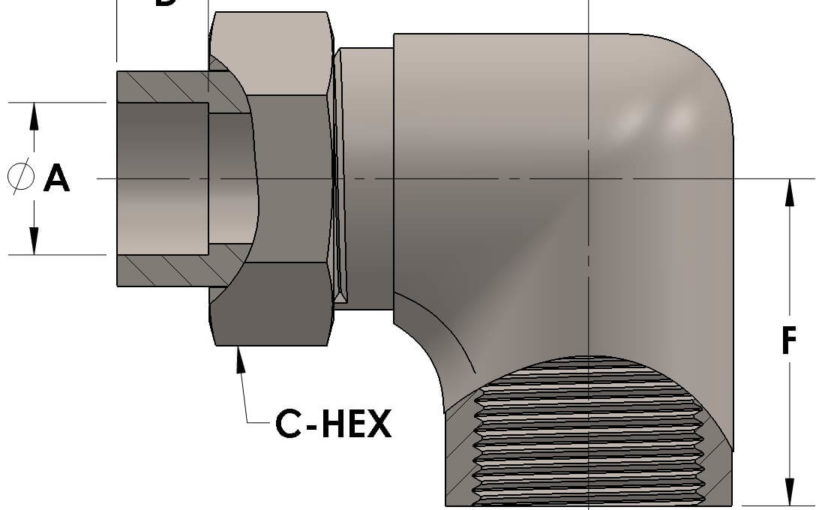

Dimensions

A 0.380
B-NPT 1/4" - 18
C-HEX 0.81
D 0.250
E 1.50
F 1.06

General

Pressure Rating 6000 PSI
Assembly Material Carbon Steel, ASTM A108
O-Ring Material Viton® Fluorocarbon Type 1, Class 2 (90 durometer)
Connection 1 Type Female Tube Socket
Connection 1 Size 3/8" Tube O.D. (-06)
Connection 2 Type Female Pipe Thread
Connection 2 Size 1/4” NPT (-04)
