Fittings / Mark VIII® / H823-08-10-SS316L

Tube to Male Straight Thread Elbow Assembly

Data sheet
American Engineering Trusted Wordwide ®

DATA SHEET

H823-08-10-SS316L
11/06/2025 9:14 PM

Product Category H823-08-10-SS316L
Part Description Tube to Male Straight Thread Elbow Assembly

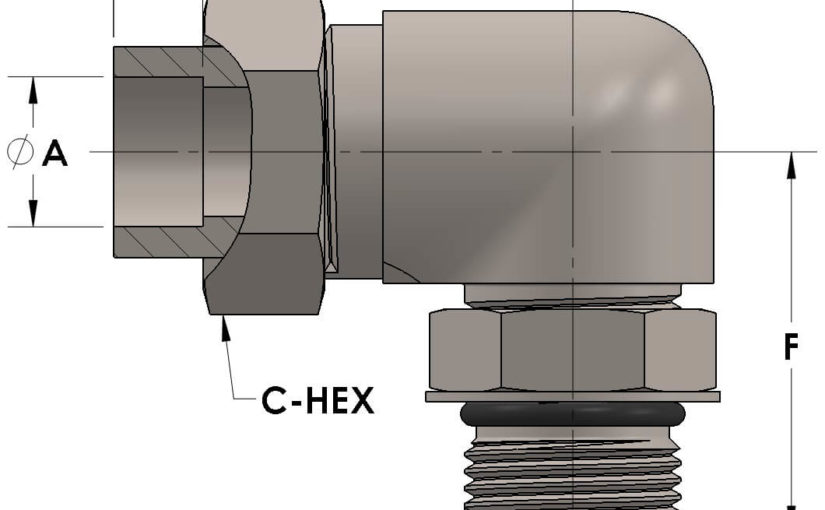

Dimensions

A 0.500
B-THREAD .875" - 14UNF
C-HEX 1.13
D 0.310
E 2.00
F 1.69

General

Pressure Rating 4500 PSI
Assembly Material 316/L Stainless Steel, ASTM A276, UNS S31600/03
O-Ring Material Viton® Fluorocarbon Type 1, Class 2 (90 durometer)
Connection 1 Type Female Tube Socket
Connection 1 Size 1/2" Tube O.D. (-08)
Connection 2 Type Male Straight Thread
Connection 2 Size .875" - 14UNF (-10)

cpvmfg.com | 484.731.4010

The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user. Caution: Do not mix or interchange valve components with those of other manufacturers.
