Fittings / Direct Weld® / H830-12-M

Direct Socketweld/Braze Tee (Tube)

Data sheet
[wp_objects_pdf]
American Engineering Trusted Wordwide ®

DATA SHEET

H830-12-M
11/16/2025 10:26 PM

Product Category H830-12-M
Part Description Direct Socketweld/Braze Tee (Tube)

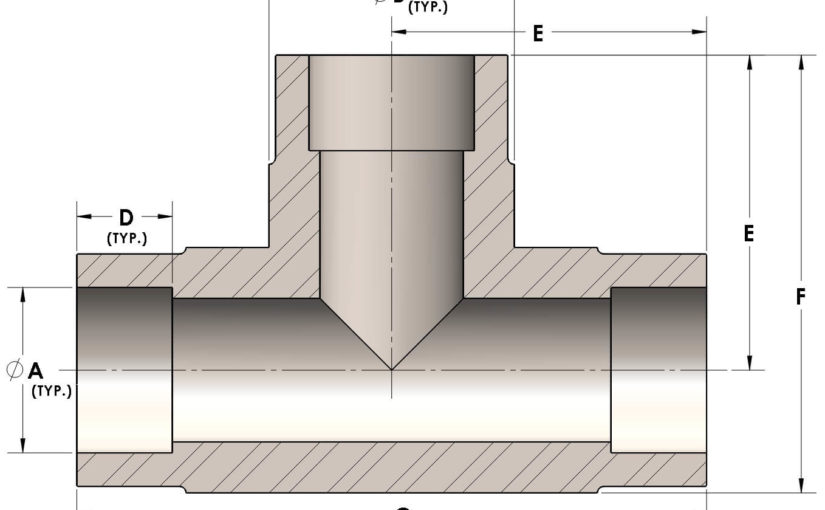

Dimensions

A 0.750
B 1.13
C 2.88
D 0.440
E 1.44
F 2.00

General

Pressure Rating 6000 PSI
Fitting Material Monel®, ASTM B164, UNS N04405

cpvmfg.com | 484.731.4010

The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user. Caution: Do not mix or interchange valve components with those of other manufacturers.
