Fittings / Direct Weld® / H830-16-M

Direct Socketweld/Braze Tee (Tube)

Data sheet
American Engineering Trusted Wordwide ®

DATA SHEET

H830-16-M
11/07/2025 1:16 AM

Product Category H830-16-M
Part Description Direct Socketweld/Braze Tee (Tube)

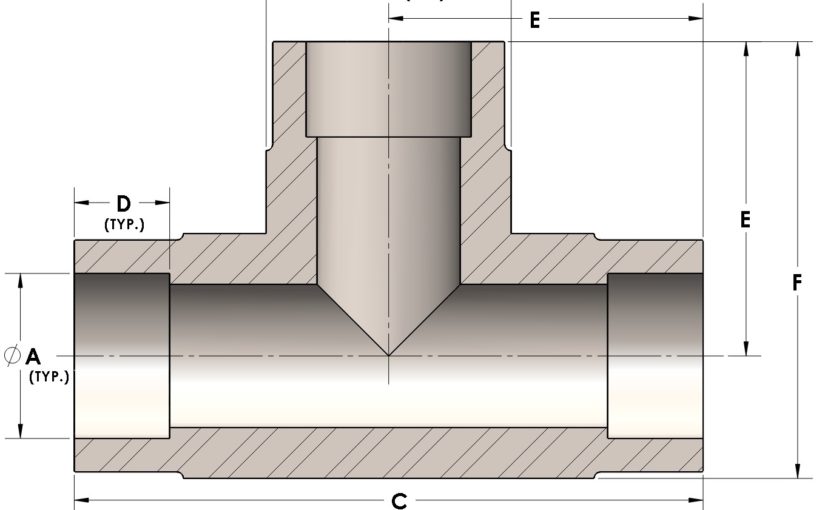

Dimensions

A 1.000
B 1.38
C 3.13
D 0.500
E 1.56
F 2.25

General

Pressure Rating 6000 PSI
Fitting Material Monel®, ASTM B164, UNS N04405

cpvmfg.com | 484.731.4010

The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user. Caution: Do not mix or interchange valve components with those of other manufacturers.
