Fittings / Direct Weld® / H840-12-M

Direct Socketweld/Braze 90° Elbow (Tube)

Data sheet
American Engineering Trusted Wordwide ®

DATA SHEET

H840-12-M
11/07/2025 2:00 AM

Product Category H840-12-M
Part Description Direct Socketweld/Braze 90° Elbow (Tube)

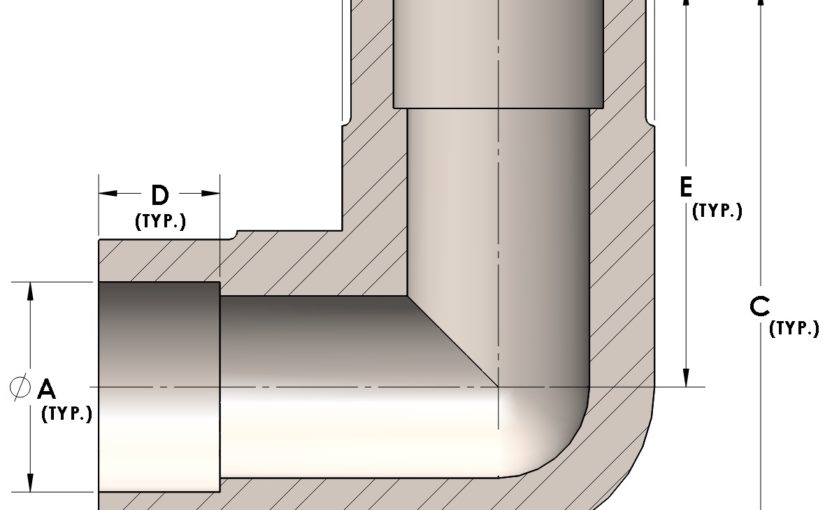

Dimensions

A 0.750
B 1.13
C 2.00
D 0.440
E 1.44

General

Pressure Rating 4500 PSI
Fitting Material Monel®, ASTM B164, UNS N04405

cpvmfg.com | 484.731.4010

The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user. Caution: Do not mix or interchange valve components with those of other manufacturers.
