Fittings / Direct Weld® / H847-24-SS316L

Direct Socketweld/Braze Coupling (Tube)

Data sheet
American Engineering Trusted Wordwide ®

DATA SHEET

H847-24-SS316L
11/07/2025 11:46 PM

Product Category H847-24-SS316L
Part Description Direct Socketweld/Braze Coupling (Tube)

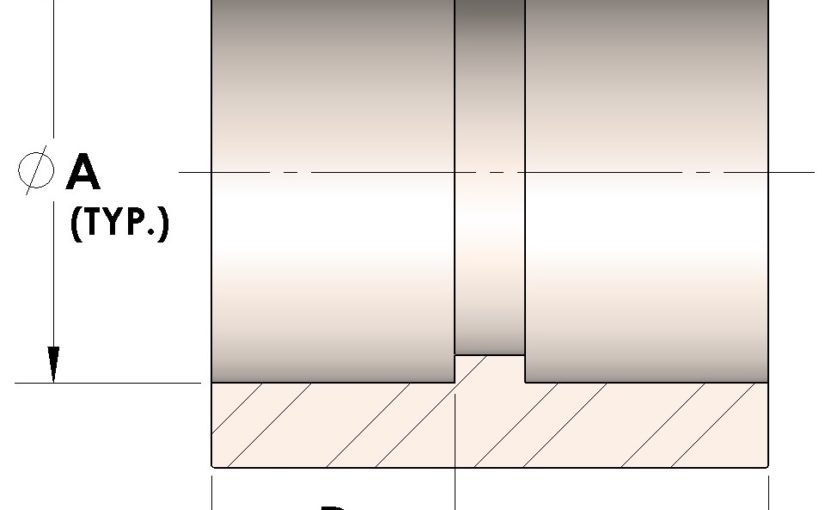

Dimensions

A 1.500
C 1.38
D 0.630

General

Pressure Rating 3000 PSI
Fitting Material 316/L Stainless Steel, ASTM A276, UNS S31600/03

cpvmfg.com | 484.731.4010

The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user. Caution: Do not mix or interchange valve components with those of other manufacturers.
