Fittings / Mark VIII® / H849-08-SS316L

Socketweld/braze Tube Union Assembly

Data sheet
American Engineering Trusted Wordwide ®

DATA SHEET

H849-08-SS316L
11/07/2025 1:40 AM

Product Category H849-08-SS316L
Part Description Socketweld/braze Tube Union Assembly

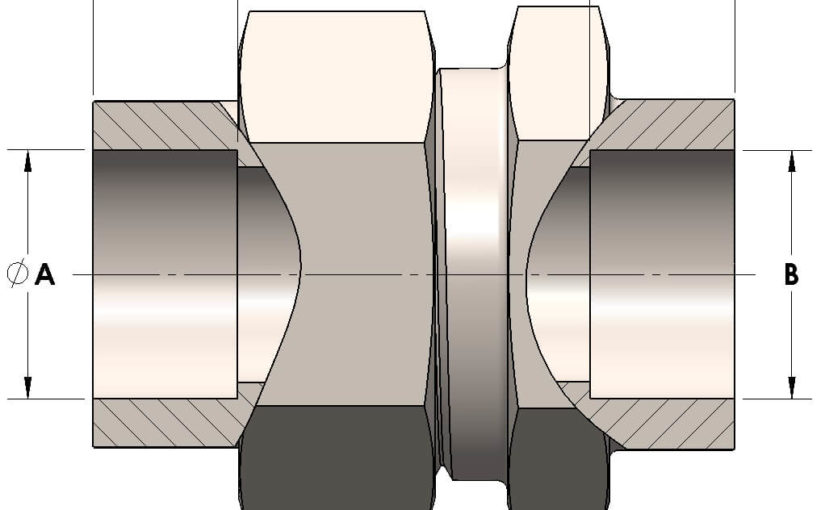

Dimensions

A 0.500
B 0.50
C-HEX 0.94
D 0.310
E 0.31
F 1.44
G-HEX 0.88

General

Pressure Rating 4500 PSI
Assembly Material 316/L Stainless Steel, ASTM A276, UNS S31600/03
O-Ring Material Viton® Fluorocarbon Type 1, Class 2 (90 durometer)
Connection 1 Type Female Tube Socket
Connection 1 Size 1/2" Tube O.D. (-08)
Connection 2 Type Female Tube Socket
Connection 2 Size 1/2" Tube O.D. (-08)

cpvmfg.com | 484.731.4010
